Description

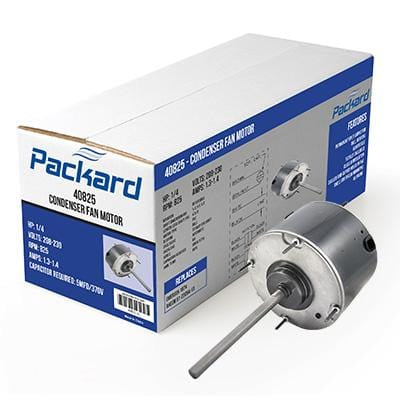

The Packard 40825 Boat Fan Motor is a condenser fan motor that measures 5 5/8" diameter, 1/4 horsepower, 208-230 volt, and 825 rpm. This boat fan motor features a permanent split capacitor, reversible rotation, automatic overload protection, Rheem mounting, and a total enclosure. See below for a list of compatible HVAC units and if the Packard 40825 does not fit with your model, browse the rest of our HVAC motors.
Specifications
| amps | 1.9 |
| bearings | Ball |
| diameter | 5 5/8" |
| dimensions | Shaft Dimension: 1/2" x 6-1/2" |
| enclosure | Totally Enclosed |
| frame | 48 |
| hertz | 60 |
| horse power | 2021-01-04 00:00:00 -0500 |
| length less shaft | 4 1/4" |
| mounting | Extended Studs |
| output voltage | 208-230 |
| overload | Automatic |
| phase | 1 |
| rotation | Reversible |
| rpm | 825 |
| service factor | 1.35 |
| shafts | 1 |
| speeds | 1 |
| type | Permanent Split Capacitor |
| weight | 13.85 lbs |
