Description

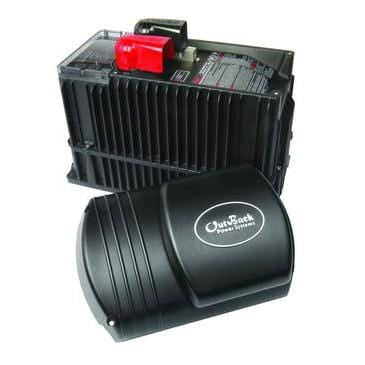

OutBack Power VFXR3524A-01 A-Series, 60Hz, 120V, 3500 Watt, Vented Inverter/Charger.
Specifications
| accessory ports | Remote temperature sensor (included), MATE3 and HUB communications |
| ac input frequency range | 54 to 66Hz (45 to 55Hz) |
| ac input voltage range | 85 to 140VAC |
| ac output frequency | 60Hz (50Hz) (Selectable) |
| ac output voltage | 120VAC (100-130VAC) (Selectable) |
| advanced battery charging | Flooded, gel, AGM, lithium-ion and flow chemistry |
| battery charge output | 82ADC |
| certificates | UL1741, CSA C22.2 No. 107.1, UL1778, Annex FF |
| continuous ac output current | 29.2AAC (@ 25┬░C) |
| continuous power | 3500VA (@ 25┬░C) |
| dc input voltage range | 21 to 34VDC |
| dimensions | 13 x 8.25 x 16.25 (HxWxL) |
| efficiency | 0.93 |
| grid-interactive frequency | 59.3 to 60.5Hz |
| grid-interactive voltage range | 106 to 132VAC |
| idle power | Full: ~34W Search: ~9W Off: ~3W |
| instantaneous power | 6000VA (100ms) |
| maximum ac input current | 60AAC |
| maximum battery charging | AC: 20AAC DC: 82ADC Power: 2230VA |
| nominal dc input voltage | 24VDC |
| output voltage regulation | ┬▒2.5% |
| peak power | 4000VA (30 Min) |
| surge power | 5400VA (5 Sec) |
| temperature range | Rated: -20 to 50┬░C Operating: -40 to 60┬░C Storage: -40 to 60┬░C |
| total harmonic distortion | Typical: <2% Maximum: <5% |
| warranty | 5 Year |
| wattage | 3500 Watts |
| weight | 61 Lbs. |
