Description

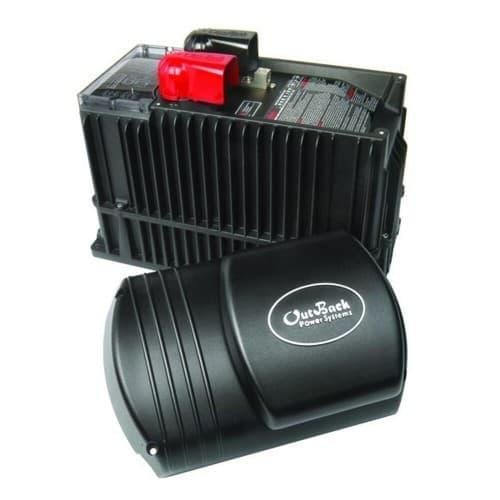

OutBack Power VFXR3024E 3000 Watts, E-Series 50Hz/230V Inverter/Charger. This product is rated for European use.
Specifications
| accessory ports | Remote temperature sensor (included), MATE3 and HUB communications |
| ac input frequency range | 45 to 55Hz (54 to 66Hz) |
| ac input voltage range | (MATE Adjustable) 170 to 290VAC |
| ac output frequency | 50Hz (60Hz) (Selectable) |
| ac output voltage | 230VAC (200-260VAC) (selectable) |
| advanced battery charging | Flooded, gel, AGM, lithium-ion and flow chemistry |
| battery charge output | 85 ADC |
| certifications | IEC 62109, EN 61000-3, EN 61000-6, AS4777.2/3 |
| continuous ac output current | 13 AAC |
| continuous power | 3000 VA |
| dc input voltage range | 21 to 34VDC |
| dimensions | 13 x 8.25 x 16.25 (HxWxL) |
| efficiency | 0.92 |
| grid-interactive frequency | 47 to 51Hz |
| grid-interactive voltage range | 208 to 252VAC |
| idle power | Full: ~34W Search: ~9W Off: ~3W |
| instantaneous power | 5750 VA (100ms) |
| maximum ac input current | 30 AAC |
| maximum battery charging | AC: 10AAC DC: 85ADC Power: 2180W |
| nominal dc input voltage | 24 VDC |
| output voltage regulation | ┬▒2.5% |
| peak power | 3300 VA (30 Min) |
| surge power | 5175 VA (5 Sec) |
| temperature range | Rated: -20 to 50┬░C Operating: -40 to 60┬░C Storage: -40 to 60┬░C |
| total harmonic distortion | Typical: <2% Maximum: <5% |
| warranty | 5 Year Warranty |
| weight | 61 lbs |
