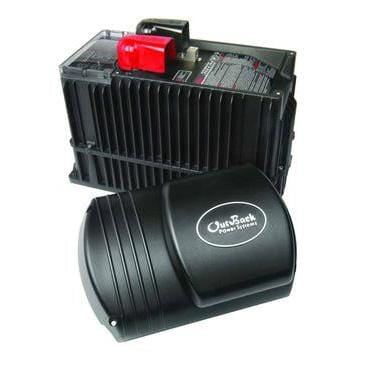

OutBack Power VFXR2812A A-Series, 60Hz, 120V, 2800 Watt, Vented Inverter/Charger

Outback PowerSKU: VFXR2812A

Sale price$1,802.27 Regular price$2,999.99 Save $1,197.72
10 In stock Free Shipping


OutBack Power VFXR2812A A-Series, 60Hz, 120V, 2800 Watt, Vented Inverter/Charger.

The latest, most advanced features on the industry’s most trusted and proven platform—that’s the essence of OutBack’s new FXR Series of Grid/Hybrid inverter/chargers. This unit is capable of off-grid or grid-connected use, and comes equipped with seven programmable modes, which include GridZero and Support Mode. This unit also boasts Advanced Battery Charging, which enables system designers to accommodate specific charging profiles and algorithms of new and emerging energy storage solutions which include Lithium Ion, Aqueous, and Flow chemistry batteries.
Along with those features, this unit also supports multiple unit stacking and allows for connections with other OutBack Power electronic products for seamless system integration and the ability to handle a wider variety of applications. This unit is vented and boasts a NEMA type 1 die-cast aluminum chassis which can operate in the harshest conditions.


accessory ports Remote temperature sensor (included), MATE3 and HUB communications
ac input frequency range 54 to 66Hz (45 to 55Hz)
ac output frequency 60Hz (50Hz) (Selectable)
ac output voltage 120VAC (100-130VAC) (Selectable)
advanced battery charging Flooded, gel, AGM, lithium-ion and flow chemistry
battery charge output 125ADC
certificates UL1741, CSA C22.2 No. 107.1, UL1778, Annex FF
continuous ac output current 23.3AAC (@ 25┬░C)
continuous power 2800VA (@ 25┬░C)
dc input voltage range 85 to 140VAC (MATE3 Adjustable)
dimensions 13 x 8.25 x 16.25 (HxWxL)
efficiency 0.9
idle power Full: ~34W Search: ~9W Off: ~3W
instantaneous power 4800VA (100ms)
maximum ac input current 60AAC
maximum battery charging AC:18AAC DC: 125ADC Power: 1700VA
nominal dc input voltage 12VDC
output voltage regulation ┬▒2.5%
peak power 3200VA (30 Min)
surge power 4500VA (5 Sec)
temperature range Rated: -20 to 50┬░C Operating: -40 to 60┬░C Storage: -40 to 60┬░C
total harmonic distortion Typical: <2% Maximum: <5%
warranty 5 Years
weight 61 Lbs.
