Description

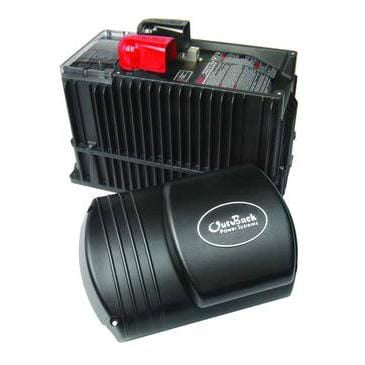

OutBack Power VFX3648M 3600 Watt, 60Hz, 120VAC Pure Sine Wave Vented Mobile/Marine Inverter/Charger.
Specifications
| ac input current maximum | 30 Amps AC |
| ac input frequency range | 54 to 66 Hz |
| ac input voltage range | (MATE Adjustable) 80 to 150 VAC |
| ac output frequency | 60 Hz |
| ac output voltage | 120 VAC |
| ac overload capability | Surge: 6000 VA | 5 Sec: 5000 VA | 30 Min: 4000 VA |
| certifications | ETL Listed to UL485 |
| continuous ac output current | RMS Output at 25C - 30 Amps AC |
| continuous power | 3600 VA |
| dimensions | 13" x 8.25" x 16.25" (HxWxL) |
| efficiency | 0.93 |
| idle power | Full: ~23 Watts | Search: ~6 Watts |
| maximum output current | Peak: 70 Amps AC | RMS: 50 Amps AC |
| neutral-ground bond switched | Yes |
| nominal dc input voltage | 48 VDC |
| output voltage regulation | +/-2% |
| temperature range | Rated: 0 to 50C (power derated above 25C) | Max: -25 to 60C |
| total harmonic distortion | Typical: 2% | Max: 5% |
| warranty | Standard 5 Year |
| weight | 62 Lbs |
