Description

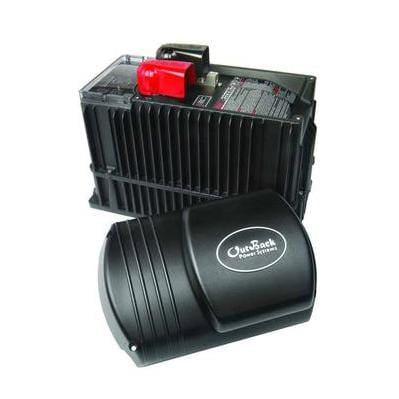

OutBack Power VFX3048EM 3000 Watt, 50Hz, 230VAC Pure Sine Wave Sealed Mobile/Marine Inverter/Charger. This unit is rated for European use.
Specifications
| ac input current maximum | 30 AAC |
| ac input frequency range | 44 to 56 Hz |
| ac input voltage range | (MATE Adjustable) 160 to 300 VAC |
| ac output frequency | 50 Hz |
| ac output voltage | 230 VAC |
| ac overload capability | Surge: 5750 VA | 5 Sec: 4800 VA | 30 Min: 3300 VA |
| battery charge output | 45 ADC |
| continuous ac output current | RMS Output at 25┬░C - 13 AAC |
| continuous power | 3000 VA |
| dc input voltage range | 42 to 68 VDC |
| dimensions | 12 x 8.25 x 16.25 (HxWxL) |
| efficiency | 0.93 |
| idle power | Full: ~23 Watts | Search: ~6 Watts |
| maximum output current | Peak: 28 AAC | RMS: 20 AAC |
| nominal dc input voltage | 48 VDC |
| output voltage regulation | ┬▒2% |
| temperature range | -40 to 60┬░C (power derated above 25┬░C) |
| total harmonic distortion | Typical: 2% | Max: 5% |
| warranty | 5 Year Warranty |
| weight | 61 Lbs. |
