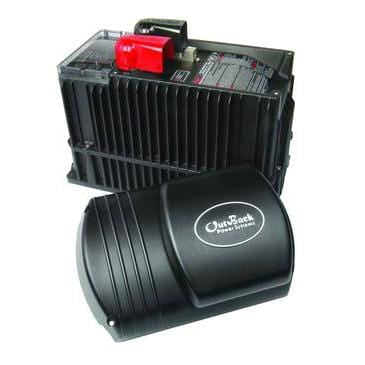

OutBack Power VFX2812M 2800 Watt, 60Hz, 120VAC Pure Sine Wave Vented Mobile/Marine Inverter/Charger.
OutBack Power’s M-Series inverter/chargers provide prue sinewave power output, and intelligent battery charging. This unit is designed to be modularly expandable depending on what your needs are, and can be used in a variety of ways, some of which include an AC to DC inverter, battery charger, AC transfer switch, and even a 30 Amp pass through. The unit boasts a weather resistant vented chassis designed to deal with the harshest of environments you can throw at it. The internal components are corrosion resistant, allowing for a longer lasting and highly reliable unit.
In addition to all those features, this inverter/charger produces a virtually distortion free sine wave for onboard electronics, which includes sensitive home theatre equipment and microwaves with minimal RF interference.
|ac input current maximum||30 Amps AC|
|ac input frequency range||54 to 66 Hz|
|ac input voltage range||(MATE Adjustable) 80 to 150 VAC|
|ac output frequency||60 Hz|
|ac output voltage||120 VAC|
|ac overload capability||Surge: 4800 VA | 5 Sec: 4000 VA | 30 Min: 3200 VA|
|battery charge output||125 Amps DC|
|certifications||ETL Listed to UL485|
|continuous ac output current||RMS Output at 25┬░C - 23.3 Amps AC|
|continuous power||2800 VA (@ 25┬░C)|
|dimensions||13 x 8.25 x 16.25ΓÇ¥ (HxWxL)|
|idle power||Full: ~20 Watts | Search: ~6 Watts|
|maximum output current||Peak: 56 Amps AC | RMS: 40 Amps AC|
|neutral-ground bond switched||Yes|
|nominal dc input voltage||12 VDC|
|output voltage regulation||┬▒2%|
|temperature range||Rated: 0 to 50┬░C (power derated above 25┬░C) | Max: -25 to 60┬░C|
|total harmonic distortion||Typical: 2% | Max: 5%|
