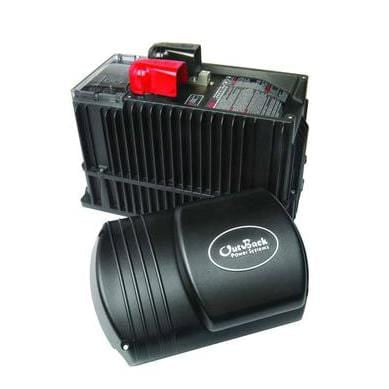

OutBack Power VFX2612EM 2600 Watt, 50Hz, 230VAC Pure Sine Wave Vented Mobile/Marine Inverter/Charger
10 In Stock!
Would you like to calculate shipping for this item?
OutBack Power VFX2612EM 3000 Watt, 50Hz, 230VAC Pure Sine Wave Vented Mobile/Marine Inverter/Charger. See below for additional product information and specifications.
OutBack Power’s M-Series inverter/chargers provide pure sinewave power output, and intelligent battery charging. This unit is designed to be modularly expandable depending on what your needs are, and can be used in a variety of ways, some of which include an AC to DC inverter, battery charger, AC transfer switch, and even a 30 Amp pass through. The unit boasts a weather resistant vented chassis designed to deal with the harshest of environments you can throw at it. The internal components are corrosion resistant, allowing for a longer lasting and highly reliable unit.
In addition to all those features, this inverter/charger produces a virtually distortion free sine wave for onboard electronics, which includes sensitive home theatre equipment and microwaves with minimal RF interference. This unit is rated for European use, and may require different useage depending on location and available hardware.
- Nominal DC Input Voltage : 12 VDC
- Continuous Power : 2600 VA
- Wattage : 2600 Watts
- AC Output Voltage : 230 VAC
- AC Output Frequency : 50 Hz
- Continuous AC RMS Output at 25°C : 11.3 AAC
- Idle Power : Full: ~20 Watts | Search: ~6
- Efficiency : 90%
- Total Harmonic Distortion : Typical: 2% | Max: 5%
- Output voltage regulation : ±2%
- Maximum Output Current : Peak: 28 AAC | RMS: 20 AAC
- AC Overload Capability : Surge: 4600 VA | 5 Sec: 4000 VA | 30 Min: 3100 VA
- AC Input Current Maximum : 30 AAC
- AC Input Voltage Range (MATE Adjustable) : 160 to 300 VAC
- AC Input Frequency Range : 44 to 56 Hz
- DC Input Voltage Range : 10.5 to 17 VDC
- Temperature Range : -40 to 60°C (power derated above 25°C)
- Continuous Battery Charge Output : 120 ADC
- Warranty : 5 Year Warranty
- Weight : 61 Lbs.
- Dimensions : 12 x 8.25 x 16.25 (HxWxL)
