Description

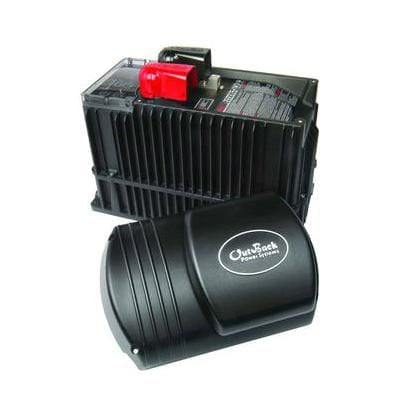

OutBack Power FXR2524A-01 A-series 60Hz, 120V Inverter/Charger.
Specifications
| accessory ports | Remote temperature sensor (included), MATE3 and HUB communications |
| ac input frequency range | 54 to 66Hz (45 to 55Hz) |
| ac input voltage range | 85 to 140VAC (MATE3 Adjustable) |
| ac output frequency | 60Hz (50Hz) (Selectable) |
| ac output voltage | 120VAC (100 - 130VAC) (Selectable) |
| advanced battery charging | Flooded, gel, AGM, lithium-ion and flow chemistry |
| battery charge output | 55ADC |
| continuous ac output current | 20.8AAC |
| continuous power | 2500VA (@ 25┬░C) |
| dc input voltage range | 21 to 34VDC |
| dimensions | 16x8x13 (LxWxH) |
| efficiency | 0.92 |
| grid-interactive frequency | 59.3 to 60.5Hz |
| grid-interactive voltage range | 106 to 132VAC |
| idle power | Full: ~34W Search: ~9W Off: ~3W |
| instantaneous power | 6000VA (100ms) |
| maximum ac input current | 60AAC |
| maximum battery current | AC: 14AAC DC: 55ADC Power: 1500VA |
| nominal dc input voltage | 48VDC |
| output voltage regulation | ┬▒2.5% |
| peak power | 3200VA (30 Min) |
| surge power | 5400VA (5 Sec) |
| total harmonic distortion | Typical: <2% Maximum: <5% |
| warranty | Standard 5 Year |
| wattage | 2500 Watts |
| weight | 62 Lbs. |
