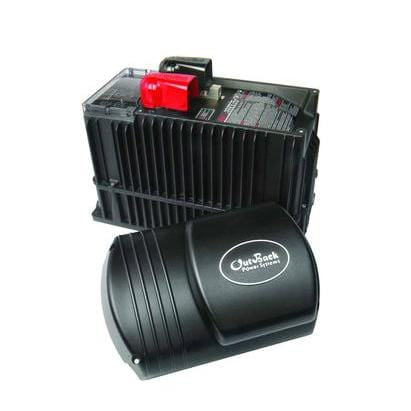

OutBack Power FXR2024E 2000 Watts, E-Series 50Hz/230V Inverter/Charger

Save $3,067.27
OutBack PowerSKU: FXR2024E

Price:
Sale price$1,758.85 Regular price$4,826.12
Stock:
In stock (5 units)
Free Shipping* (Some exclusions apply)

Description

OutBack Power FXR2024E 2000 Watts, E-Series 50Hz/230V Inverter/Charger. This product is rated for European use.

Specifications

accessory ports Remote temperature sensor (included), MATE3 and HUB communications
ac input frequency range 45 to 55Hz (54 to 66Hz)
ac input voltage range (MATE Adjustable) 170 to 290VAC
ac output frequency 50Hz (60hz) (Selectable)
ac output voltage 230VAC (200-260VAC) (selectable)
advanced battery charging Flooded, gel, AGM, lithium-ion and flow chemistry
battery charge output 55ADC
certifications IEC 62109, EN 61000-3, EN 61000-6, AS4777.2/3
continuous ac output current 8.7AAC
continuous power 2000 (@ 25┬░C)
dc input voltage range 21 to 34VDC
dimensions 13 x 8.25 x 16.25 (HxWxL)
efficiency 0.92
grid-interactive frequency 47 to 51Hz
grid-interactive voltage range 208 to 252VAC
idle power Full: ~34W Search: ~9W Off: ~3W
instantaneous power 5750 VA (100ms)
maximum ac input current 30AAC
maximum battery charging AC: 7AAC DC: 55ADC Power: 1500W
nominal dc input voltage 24VDC
output voltage regulation ┬▒2.5%
peak power 3100 VA (30 Min)
surge power 5175 VA (5 Sec)
temperature range Rated: -20 to 50┬░C Operating: -40 to 60┬░C Storage: -40 to 60┬░C
total harmonic distortion Typical: <2% Maximum: <5%
warranty 5 Year Warranty
weight 62 lbs.
