Description

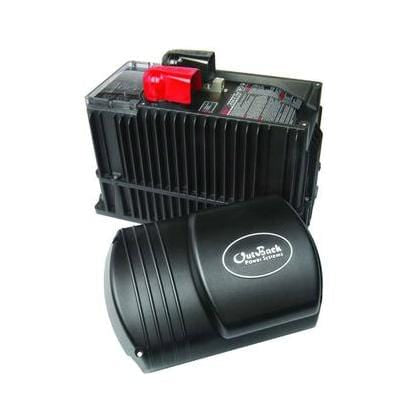

OutBack Power FXR2012E 2000 Watts, E-Series 50Hz/230V Inverter/Charger. This product is rated for European use.
Specifications
accessory ports | Remote temperature sensor (included), MATE3 and HUB communications |
ac input voltage range | (MATE Adjustable) 170 to 290VAC |
ac output frequency | 50Hz (60Hz) (Swtichable) |
ac output voltage | 230VAC (200-260VAC) (selectable) |
advanced battery charging | Flooded, gel, AGM, lithium-ion and flow chemistry |
battery charge output | 100ADC |
certifications | IEC 62109, EN 61000-3, EN 61000-6 |
continuous ac output current | 8.7AAC |
continuous power | 2000 VA (@ 25┬░C) |
dc input voltage range | 10.5 to 17VDC |
dimensions | 13 x 8.25 x 16.25 (HxWxL) |
efficiency | 0.9 |
idle power | Full: ~34W Search: ~9W Off: ~3W |
instantaneous power | 4600 VA (100ms) |
maximum ac input current | 30AAC |
maximum battery charging | AC: 7AAC DC: 100ADC Power: 1360W |
nominal dc input voltage | 12 VDC |
output voltage regulation | ┬▒2.5% |
peak power | 2500 VA (30 Min) |
surge power | 4300 VA (5 Sec) |
temperature range | Rated: -20 to 50┬░C Operating: -40 to 60┬░C Storage: -40 to 60┬░C |
total harmonic distortion | Typical: <2% Maximum: <5% |
warranty | 5 Year Warranty |
weight | 62 Lbs. |
