Description

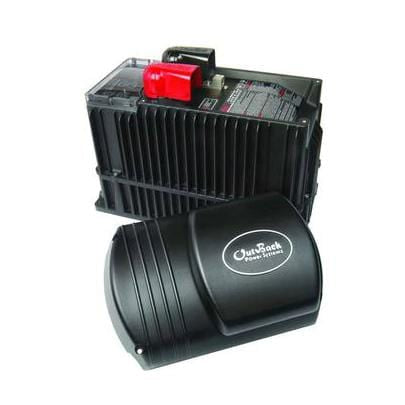

OutBack Power FXR2012A A-Series, 60Hz, 120V, 2000 Watt, Sealed Inverter/Charger.
Specifications
| accessory ports | Remote temperature sensor (included), MATE3 and HUB communications |
| ac input frequency range | 54 to 66Hz (45 to 55Hz) |
| ac input voltage range | 85 to 140VAC (MATE3 Adjustable) |
| ac output frequency | 60Hz (50Hz) (Selectable) |
| ac output voltage | 120VAC (100-130VAC) (Selectable) |
| advanced battery charging | Flooded, gel, AGM, lithium-ion and flow chemistry |
| battery charge output | 100ADC |
| certificates | UL1741, CSA C22.2 No. 107.1, UL1778, Annex FF |
| continuous ac output current | 16.7AAC (@ 25┬░C) |
| continuous power | 2000VA (@ 25┬░C) |
| dc input voltage range | 10.5 to 17VDC |
| dimensions | 13 x 8.25 x 16.25 (HxWxL) |
| efficiency | 0.9 |
| idle power | Full: ~34W Search: ~9W Off: ~3W |
| instantaneous power | 4800VA (100ms) |
| maximum ac input current | 60AAC |
| maximum battery charging | AC: 14AAC DC: 100ADC Power: 1360VA |
| nominal dc input voltage | 12VDC |
| output voltage regulation | ┬▒2.5% |
| peak power | 2500AV (30 Min) |
| surge power | 4500VA (5 Sec) |
| temperature range | Rated: -20 to 50┬░C Operating: -40 to 60┬░C Storage: -40 to 60┬░C |
| total harmonic distortion | Typical: <2% Maximum: <5% |
| warranty | 5 Years |
| weight | 62 Lbs. |
