Description

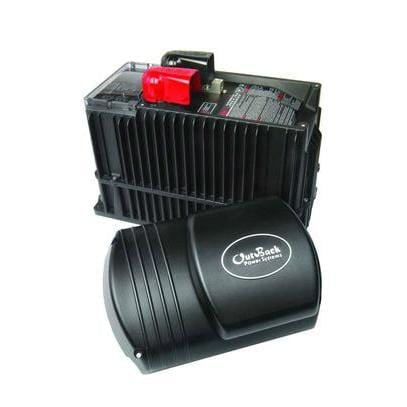

OutBack Power FX3048MT 3000 Watt, 60Hz, 120VAC Pure Sine Wave Inverter/Charger.
Specifications
| ac input current maximum | 30 Amps AC |
| ac input frequency range | 54 to 66 Hz |
| ac input voltage range | (MATE Adjustable) 80 to 150 VAC |
| ac output frequency | 60 Hz |
| ac output voltage | 120 VAC |
| ac overload capability | Surge: 6000 VA | 5 Sec: 4800 VA | 30 Min: 3200 VA |
| battery charge output | 35 Amps DC |
| certificates | ETL Listed to UL485 |
| continuous ac output current | RMS Output at 25┬░C - 25 Amps AC |
| continuous power | 3000 VA (@ 25┬░C) |
| dc input voltage range | 42 to 68 VDC |
| dimensions | 13 x 8.25 x 16.25ΓÇ¥ (HxWxL) |
| efficiency | 0.93 |
| idle power | Full: ~23 Watts | Search: ~6 Watts |
| maximum output current | Peak: 70 Amps AC | RMS: 50 Amps AC |
| neutral-ground bond switched | Yes |
| nominal dc input voltage | 48 VDC |
| output voltage regulation | ┬▒2% |
| temperature range | Rated: 0 to 50┬░C (power derated above 25┬░C) | Max: -25 to 60┬░C |
| total harmonic distortion | Typical: 2% | Max: 5% |
| warranty | 5 Years |
| weight | 62 Lbs. |
