Description

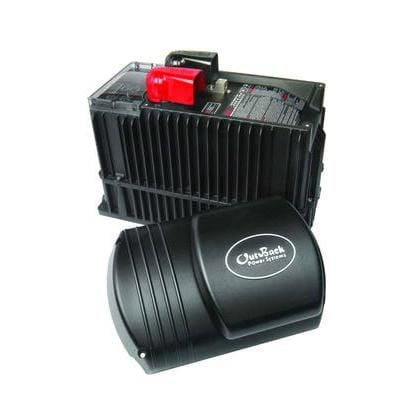

OutBack Power FX2348EMT 2300 Watt, 60Hz, 120VAC Pure Sine Wave Sealed Mobile/Marine Inverter/Charger. This product is rated for European use.
Specifications
| ac input current maximum | 30 AAC |
| ac input frequency range | 44 to 56 Hz |
| ac input voltage range | (MATE Adjustable) 160 to 300 Vac |
| ac output frequency | 50 Hz |
| ac output voltage | 230 VAC |
| ac overload capability | Surge: 5750 VA | 5 Sec: 4800 VA | 30 Min: 3100 VA |
| battery charge output | 35 ADC |
| continuous ac output current | RMS Output at 25┬░C 10.0 AAC |
| continuous power | 2300 VA (@ 25┬░C) |
| dc input voltage range | 42.0 to 68.0 Vdc |
| dimensions | 13x9x16 |
| efficiency | 0.93 |
| idle power | Full: ~23 Watts | Search: ~6 Watts |
| maximum output current | Peak: 35 AAC | RMS: 25 AAC |
| nominal dc input voltage | 48 VDC |
| output voltage regulation | ┬▒ 2% |
| temperature range | -40 to 60┬░C (power derated above 25┬░C) |
| total harmonic distortion | Typical: 2% | Maximum: 5% |
| warranty | 5 Year |
| wattage | 2300 Watts |
| weight | 62 Lbs. |
