Description

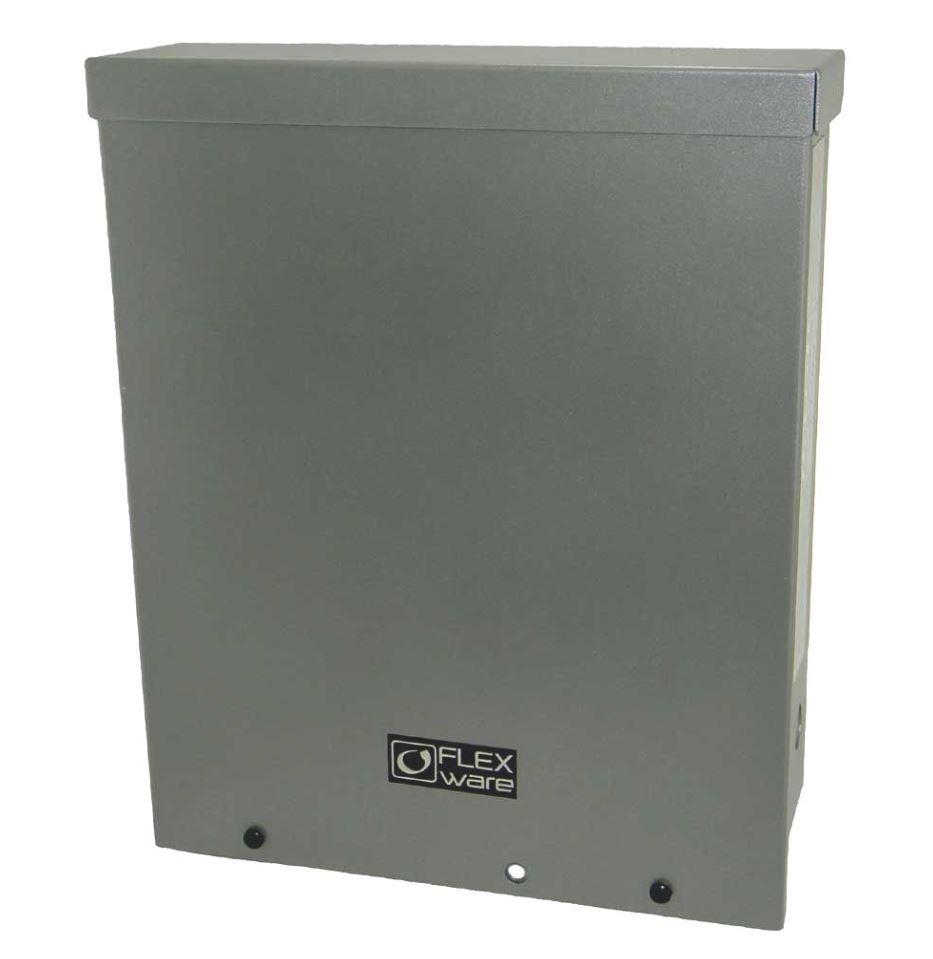

OutBack Power FWPV-12 Advanced Photovoltaic Combiner. and specifications.
Specifications
certifications | ETL Listed to UL1741, UL67, CSA22.2 #29 |
dimensions | 16 x 13 x 4 (H x W x D) |
enclosure | Outdoor Rainproof, NEMA 3R |
material | Powder coated aluminum with stainless steel hardware |
mounting | Vertical wall mount, pole mount or sloped roof mount to 14 degrees incline (3 in 12 roof pitch) |
terminals | #14 - 2/0 AWG (2.08-67.4 mm2 ) Two box lug terminals included |
weight | 6 Lbs. |
