Description

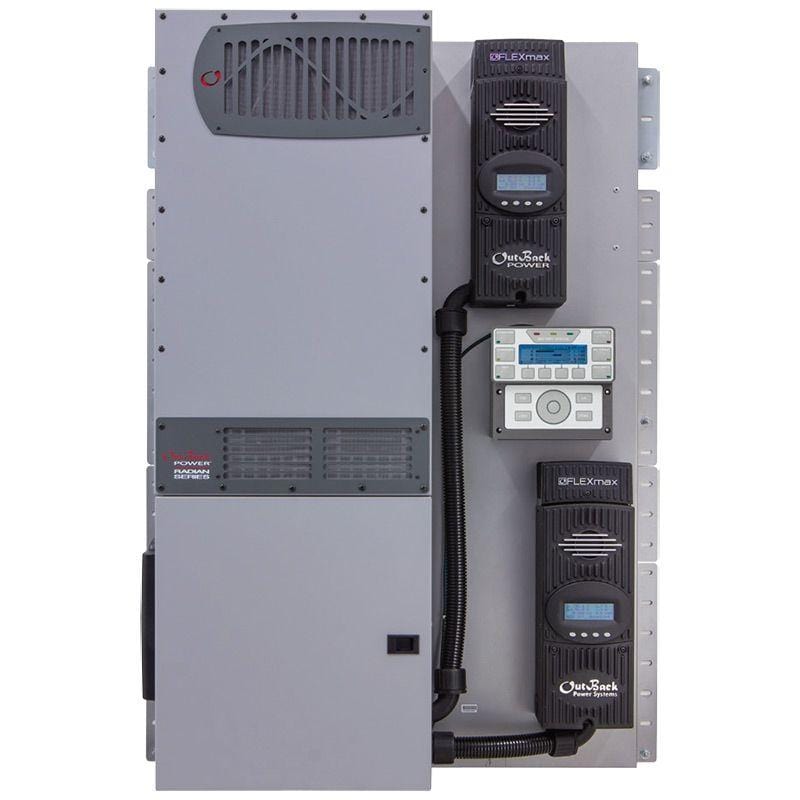

FPR-8048A-300VDC Flex Power Inverter/Charger 8.0 kW, 48 VDC
*Not available for local pick-up
Specifications
| accessory ports | Remote temperature sensor (included), MATE3s and HUB communications |
| ac input frequency range | @ 60Hz: 54 to 66Hz @ 50Hz: 45 to 55Hz |
| ac input voltage range | (MATE3s Adjustable): L1-N or L2-N: 85 to 140VAC L1-N or L2-N: 85 to 140VAC |
| ac output frequency | 60Hz (50Hz) |
| ac output voltage | 120/240 Vac |
| advanced battery charging | Flooded, gel, AGM, lithium-ion and flow chemistry |
| battery charge output | 115ADC |
| continuous ac output current | (@ 25┬░C): 16.7AAC |
| continuous power | (@ 25┬░C): 4000 VA |
| dc input voltage range | 48vdc |
| efficiency | (Typical) 93% |
| grid-interactive frequency | 59.3 to 60.5Hz |
| grid-interactive voltage range | (L1 or L2) 106 to 132 Vac |
| idle power | Invert mode, no load: 34W Search: 10W Invert mode |
| instantaneous power | 16970VA |
| maximum ac input current | 50AAC @ 240VAC |
| nominal dc input voltage | 48VDC |
| output voltage regulation | ┬▒2% |
| peak power | 9000VA |
| surge power | 12000VA |
| utility interactive current | 30A |
| warranty | Standard 5 year, extended 10 year available |
| weight | 82 |
