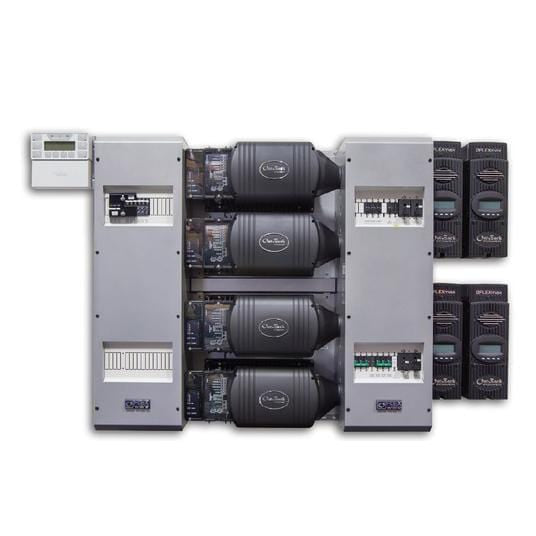

Outback Power FP4 VFXR3048E Quad Pre-Wired Grid-Interactive Inverter/Charger 12 KW, 48 VDC

Outback PowerSKU: FP4 VFXR3048E

Price:
Sale price$14,231.99 Regular price$14,249.99 Save $18
Stock:
0 Re-stocking soon Free Shipping

Description

FP4 VFXR3048E Quad Pre-Wired Grid-Interactive Inverter/Charger 12 KW, 48 VDC


*Not for local pick-up


  • Features:
  • Seven programmable modes, including GridZero and Support Mode, and built-in networked communications
  • Advanced Battery Charging (ABC) with expanded charging voltages and time parameters, enabling system designers to accommodate the specific charging profiles and algorithms of new and emerging energy storage technologies
  • including Lithium Ion, Aqueous Ion and Flow Chemistry batteries
  • Easy system upgradability in the field
  • Single-phase, 230V Sinewave Output in 12V, 24V, or 48V Versions
  • 2000W and 2300W Sealed Models
  • 2600W and 3000W Vented Models
  • Programmable for Seven Different Modes with Generator Assist
  • Modular, Stackable Design for up to Nine Inverters in Three-phase and 10 Inverters in Grid-tied
  • Up to 93% Operating Efficiency
  • Field Upgradable Software
  • Standard 5-Year Warranty with Optional 10-Year


Warning: Product may contain materials cautioned by California Proposition 65



Specifications

accessory ports Remote temperature sensor (included), MATE3 and HUB communications
ac input frequency range 45 to 55Hz (54 to 66Hz)
ac input voltage range (MATE Adjustable) 70 to 290VAC
ac output frequency 50Hz (60Hz)
ac output voltage 230VAC (200-260VAC)
advanced battery charging Flooded, gel, AGM, lithium-ion and flow chemistry
battery charge output 45ADC
certifications IEC 62109, EN 61000-3, IEC 61000-4, EN 61000-6, IEC 60068-2, IEC 1547.1, AS4777.2/3
continuous ac output current (@ 25┬░C): 13AAC
continuous power (@ 25┬░C): 3000VA
dc input voltage range 42 to 68VDC
dimensions 21.75 x 13 x 22 In.
efficiency 0.93
grid-interactive frequency 47 to 51Hz
grid-interactive voltage range 208 to 252VAC
humidity 0.93
idle power Full: ~34W Search: ~9W Off: ~3W
instantaneous power 5750VA
maximum ac input current 30AAC
nominal dc input voltage 48 VDC
output voltage regulation ┬▒2.5%
peak power 3300VA
surge power 5175VA
temperature range Rated: -20 to 50┬░C Operating: -40 to 60┬░C Storage: -40 to 60┬░C
warranty 5 year, extended 10 year available
weight 67 lbs
