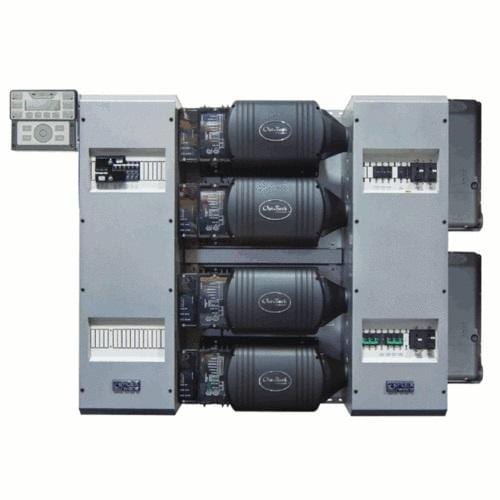

Outback Power FP4 FXR3048A-300 12 KW, 48 VDC Quad Inverter System

Save $23,936.25
Outback PowerSKU: FP4 FXR3048A-300

Price:
Sale price$13,725.68 Regular price$37,661.93
Stock:
In stock (5 units)
Free Shipping* (Some exclusions apply)

Description

FP4 FXR3048A-300 12 KW, 48 VDC Quad Inverter System


*Not available for local pick-up


Specifications

accessory ports Remote temperature sensor (included), MATE3 and HUB communications
ac input frequency range 45 to 55Hz (54 to 66Hz)
ac input voltage range (MATE Adjustable) 85 to 140VAC
ac output frequency 60Hz (50Hz)
ac output voltage 120VAC (100-130VAC)
advanced battery charging Flooded, gel, AGM, lithium-ion and flow chemistry
battery charge output 35ADC
continuous ac output current (@ 25┬░C): 25AAC
continuous power (@ 25┬░C): 25AAC
dc input voltage range 42 to 68VDC
dimensions 21.75 x 13 x 22 In.
efficiency (typical) 93%
grid-interactive frequency 59.3 to 60.5Hz
grid-interactive voltage range 106 to 132VAC
humidity 0.93
idle power ~34W Search: ~9W Off: ~3W
instantaneous power 6000VA
maximum ac input current 60AAC
nominal dc input voltage 48 VDC
output voltage regulation ┬▒2.5%
peak power 3200VA
surge power 5400VA
temperature range -20 to 50┬░C Operating: -40 to 60┬░C Storage: -40 to 60┬░C
warranty Standard 5 year, extended 10 year available
weight 67lbs
