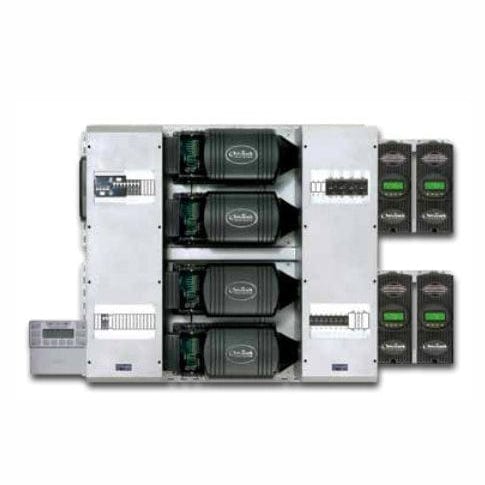

Outback Power FP4 FXR3048A-01 Quad Pre-Wired 12 KW, 48 VDC Inverter System

Outback PowerSKU: FP4 FXR3048A-01

Price:
Sale price$15,089.99 Regular price$15,104.99 Save $15
Stock:
0 Re-stocking soon Free Shipping

Description

FP4 FXR3048A-01 Quad Pre-Wired 12 KW, 48 VDC Inverter System


*Not available for local pick-up


  Features:

  • Seven programmable modes, including GridZero and Support Mode, and built-in networked communications
  • Advanced Battery Charging (ABC) with expanded charging voltages and time parameters, enabling system designers to accommodate the specific charging profiles and algorithms of new and emerging energy storage technologies including Lithium Ion, Aqueous Ion and Flow Chemistry batteries
  • Easy system upgradability in the field
  • Single-phase, 230V Sinewave Output in 12V, 24V, or 48V Versions
  • 2000W and 2300W Sealed Models
  • 2600W and 3000W Vented Models
  • Programmable for Seven Different Modes with Generator Assist
  • Modular, Stackable Design for up to Nine Inverters in Three-phase and 10 Inverters in Grid-tied
  • Up to 93% Operating Efficiency
  • Field Upgradable Software
  • Standard 5-Year Warranty with Optional 10-Year


Warning: Product may contain materials cautioned by California Proposition 65





Specifications

accessory ports Remote temperature sensor (included), MATE3 and HUB communications
ac input frequency range 85 to 140VAC
ac output frequency 60Hz (50Hz)
ac output voltage 120VAC (100-130VAC)
advanced battery charging Flooded, gel, AGM, lithium-ion and flow chemistry
battery charge output 35ADC
certifications UL1741, CSA C22.2 No. 107.1, UL1778, Annex FF
continuous ac output current (@ 25┬░C): 25AAC
continuous power (@ 25┬░C): 3000VA
dc input voltage range 42 to 68VDC
dimensions 21.75 x 13 x 22 In.
efficiency (Typical) 93%
grid-interactive frequency 59.3 to 60.5Hz
grid-interactive voltage range 106 to 132VAC
humidity 0.93
idle power ~34W Search: ~9W Off: ~3W
instantaneous power 6000VA
maximum ac input current 60AAC
nominal dc input voltage 48 VDC
output voltage regulation ┬▒2.5%
peak power 3200VA
surge power 5400VA
temperature rating -20 to 50┬░C Operating: -40 to 60┬░C Storage: -40 to 60┬░C
warranty Standard 5 year, extended 10 year available
weight 67 lbs
