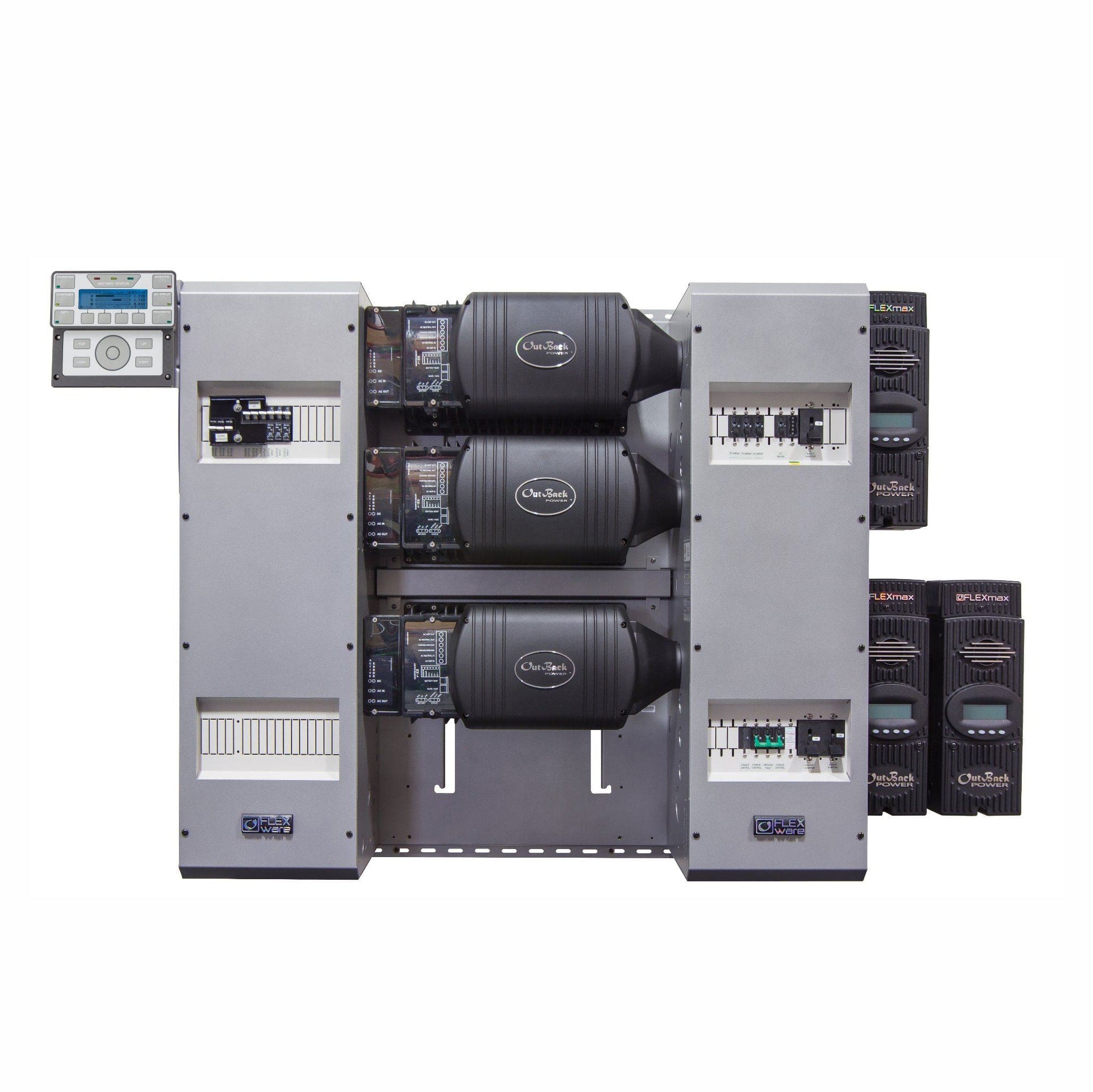

Outback Power FP3 VFXR3048E Flex Power Three 9 KW, 48 VDC Inverter System

Save $13,188.03
Outback PowerSKU: FP3 VFXR3048E

Price:
Sale price$16,485.04 Regular price$29,673.07
Stock:
In stock (5 units)
Free Shipping* (Some exclusions apply)

Description

FP3 VFXR3048E Flex Power Three 9 KW, 48 VDC Inverter System


*Not available for local pick-up


Specifications

accessory ports Remote temperature sensor (included), MATE3 and HUB communications
ac input frequency range 45 to 55Hz (54 to 66Hz)
ac input voltage range (MATE Adjustable) 170 to 290VAC
ac output frequency 50Hz (60Hz)
ac output voltage 230VAC (200-260VAC)
advanced battery charging Flooded, gel, AGM, lithium-ion and flow chemistry
battery charge output 45ADC
certifications IEC 62109, EN 61000-3, IEC 61000-4, EN 61000-6, IEC 60068-2, IEC 1547.1, AS4777.2/3
continuous ac output current 13AAC
continuous power 3000VA
dc input voltage range 42 to 68VDC
dimensions 22 x 13 x 22 In.
efficiency (Typical) 93%
grid-interactive frequency 47 to 51 Hz
grid-interactive voltage range 208 to 252VAC
humidity 0.93
idle power Full: ~34W Search: ~9W Off: ~3W
instantaneous power 5750VA
maximum ac input current 30AAC
maximum battery charging AC: 10AAC / DC: 45ADC / Power: 2180VA
nominal dc input voltage 48VDC
output voltage regulation ┬▒2.5%
peak power 3300VA
surge power 5715VA
temperature range Rated: -20 to 50┬░C Operating: -40 to 60┬░C Storage: -40 to 60┬░C
warranty Standard 5 year, extended 10 year available
weight 67 lbs
