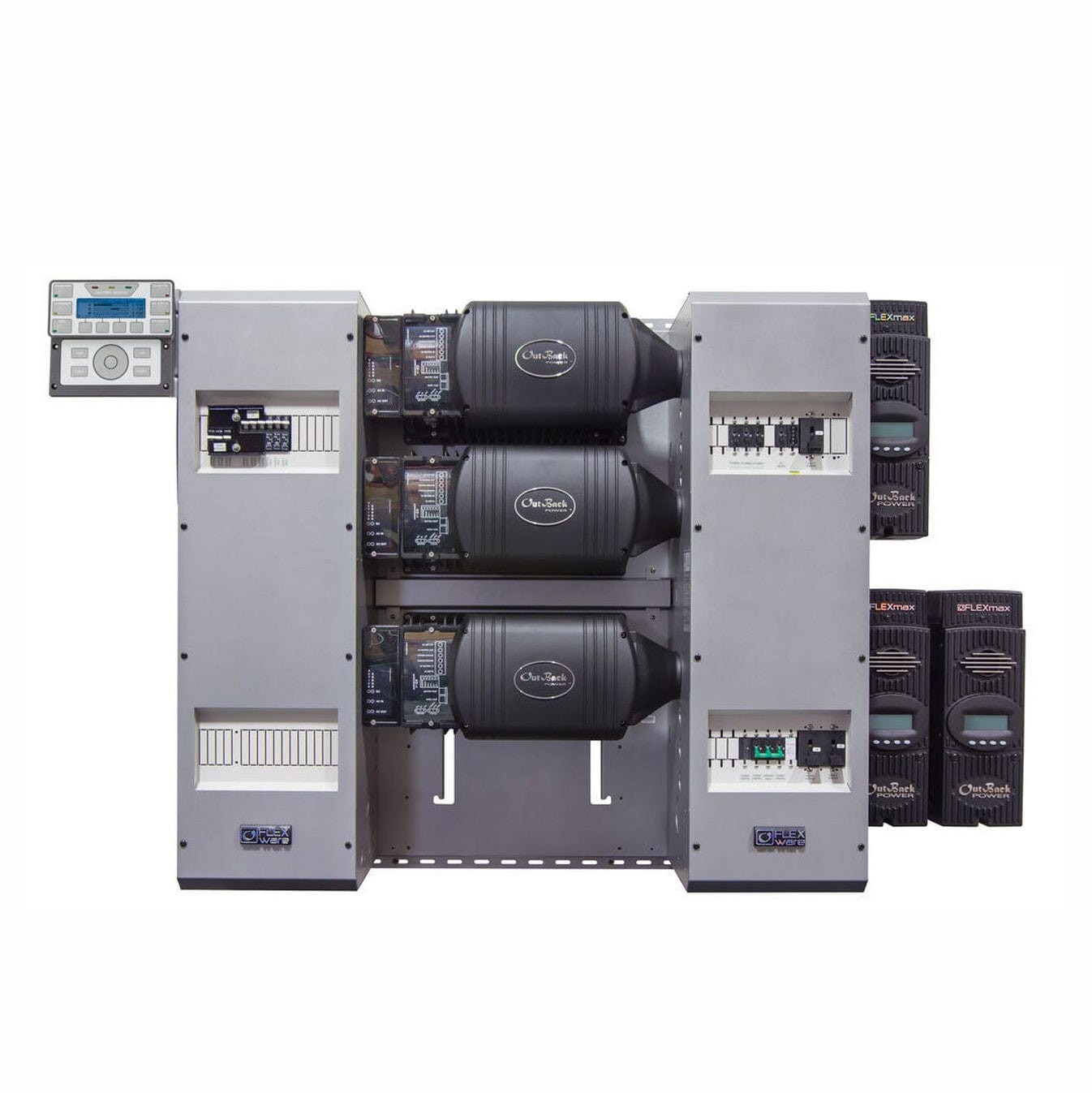

Outback Power FP3 FXR3048A-300 Flex PowerThree 9 KW, 48 VDC Inverter System

Save $19,620.98
Outback PowerSKU: FP3 FXR3048A-300

Price:
Sale price$11,251.19 Regular price$30,872.17
Stock:
In stock (5 units)
Free Shipping* (Some exclusions apply)

Description

FP3 FXR3048A-300 Flex PowerThree 9 KW, 48 VDC Inverter System


*Not available for local pick-up


Specifications

accessory ports Remote temperature sensor (included), MATE3 and HUB communications
ac input frequency range 54 to 66HZ (45 to 55HZ)
ac input voltage range (MATE Adjustable) 85 to 140VAC
ac output frequency 60Hz (50Hz)
ac output voltage 120VAC (100 to 130VAC)
advanced battery charging Flooded, gel, AGM, lithium-ion and flow chemistry
battery charge output 35ADC
certifications UL1741, CSA C22.2 No. 107.1, UL1778, Annex FF
continuous ac output current (@ 25┬░C) 25AAC
continuous power (@ 25┬░C) : 3000VA
dc input voltage range 42 to 68VDC
dimensions 22 x 13 x 22 In.
efficiency (Typical) 93%
grid-interactive frequency 59.3 to 60.5Hz
grid-interactive voltage range 106 to 132VAC
humidity 0.93
idle power Full: ~34W Search: ~9W Off: ~3W
instantaneous power (100ms): 6000VA
maximum ac input current 60AAC
maximum battery charging AC: 14AAC / DC: 35ADC / Power: 1900W
nominal dc input voltage 48VDC
output voltage regulation ┬▒2.5%
peak power (30 min): 3200VA
surge power (5 sec): 5400VA
temperature range Rated: -20 to 50┬░C Operating: -40 to 60┬░C Storage: -40 to 60┬░C
warranty Standard 5 year, extended 10 year available
weight 67 lbs
