Description

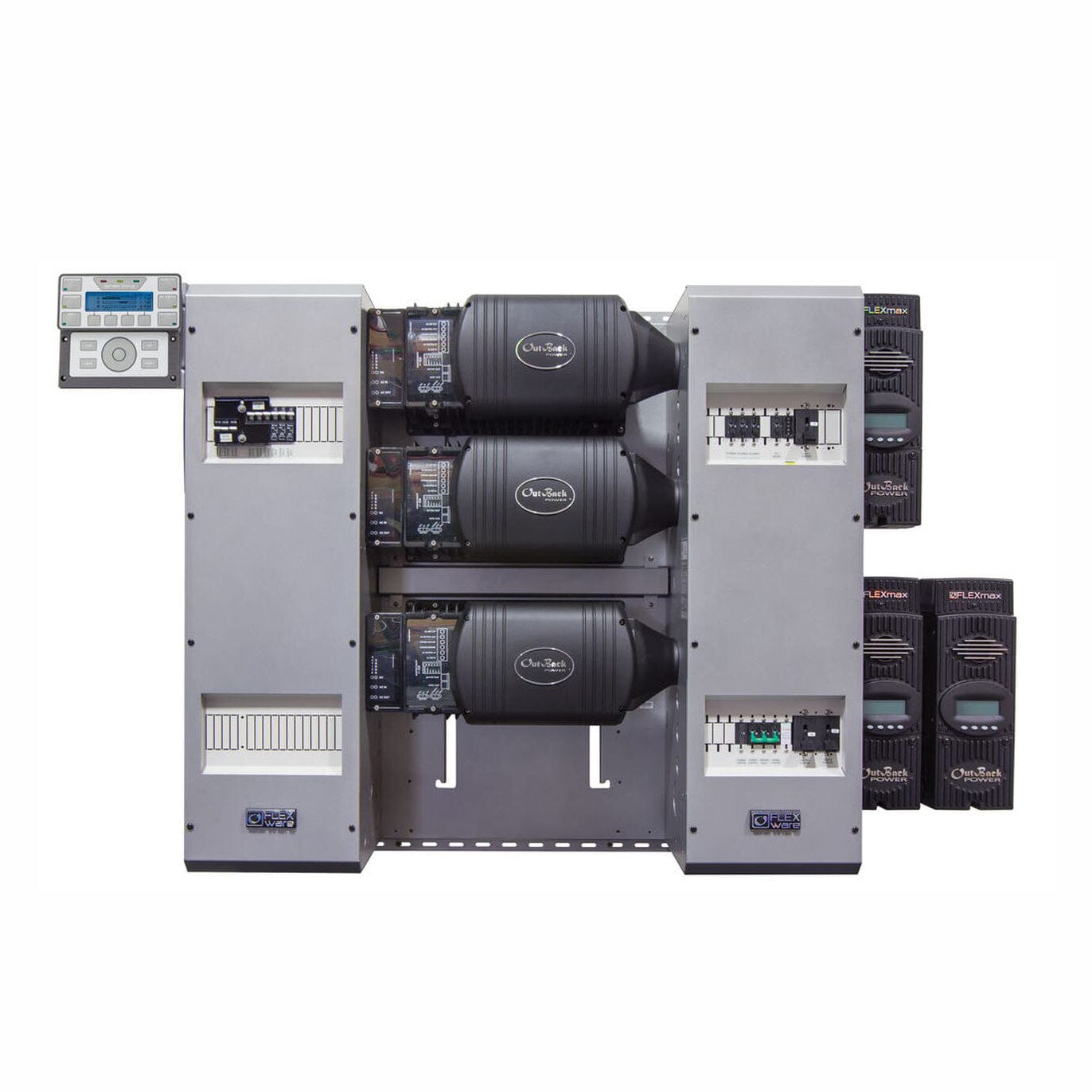

FP3 FXR3048A-01 Flex Power Three 9 KW, 48 VDC Wired Inverter System
*Not available for local pick-up
Specifications
| accessory ports | Remote temperature sensor (included), MATE3 and HUB communications |
| ac input frequency range | 54 to 66HZ (45 to 55HZ) |
| ac input voltage range | (MATE Adjustable) 85 to 140VAC |
| ac output frequency | 60Hz (50Hz) |
| ac output voltage | 120VAC (100 to 130VAC) |
| advanced battery charging | Flooded, gel, AGM, lithium-ion and flow chemistry |
| battery charge output | 35ADC |
| certifications | UL1741, CSA C22.2 No. 107.1, UL1778, Annex FF |
| charging current | 35ADC |
| continuous ac output current | (@ 25┬░C) 25AAC |
| continuous power | (@ 25┬░C) : 3000VA |
| dc input voltage range | 42 to 68VDC |
| dimensions | 22 x 13x 22 In. |
| efficiency | (Typical) 93% |
| grid-interactive frequency | 59.3 to 60.5Hz |
| grid-interactive voltage range | 106 to 132VAC |
| humidity | 0.93 |
| idle power | Full: ~34W Search: ~9W Off: ~3W |
| instantaneous power | (100ms): 6000VA |
| maximum ac input current | 60AAC |
| nominal dc input voltage | 48VDC |
| output voltage regulation | ┬▒2.5% |
| peak power | (30 min): 3200VA |
| surge power | (5 sec): 5400VA |
| warranty | Standard 5 year, extended 10 year available |
| weight | 67 lbs |
