Description

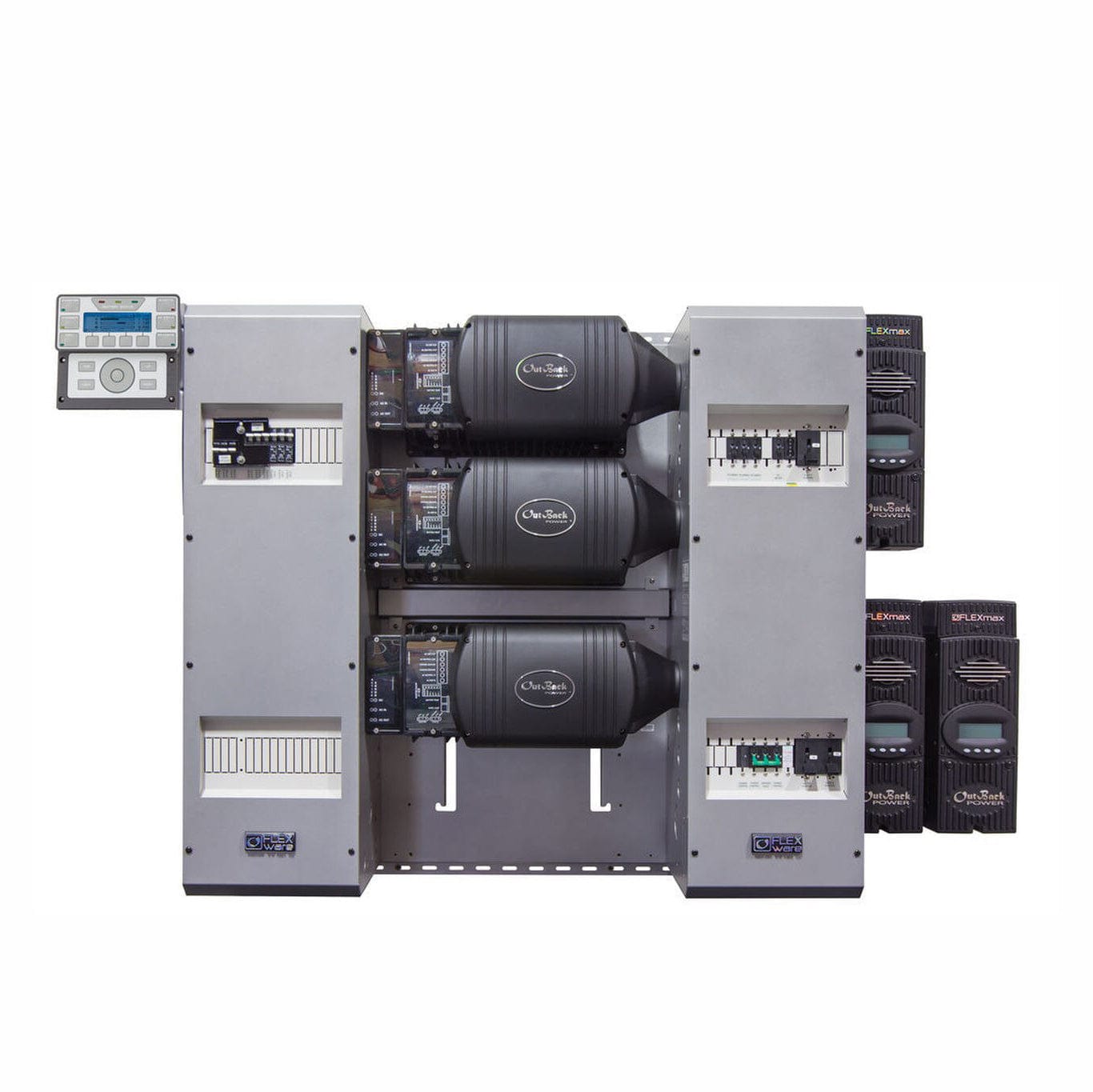

FP3 FXR2024E Flex Power Three 6 KW, 24 VDC Wired Inverter System
*Not available for local pick-up
Specifications
| accessory ports | Remote temperature sensor (included), MATE3 and HUB communications |
| ac input frequency range | 45 to 55Hz (54 to 66Hz) |
| ac input voltage range | (MATE Adjustable) 170 to 290VAC |
| ac output frequency | 50Hz (60Hz) |
| ac output voltage | 230VAC (200-260VAC) |
| advanced battery charging | Flooded, gel, AGM, lithium-ion and flow chemistry |
| battery charge output | 55ADC |
| certifications | IEC 62109, EN 61000-3, EN 61000-6, AS4777.2/3 |
| continuous ac output current | (@ 25┬░C) 8.7AAC |
| continuous power | (@ 25┬░C) 2000VA |
| dc input voltage range | 21 to 34VDC |
| dimensions | 22 x 13 x 22 In. |
| efficiency | (Typical) 93% |
| grid-interactive frequency | 47 to 51Hz |
| grid-interactive voltage range | 208 to 252VAC |
| humidity | 0.93 |
| idle power | Full: ~34W Search: ~9W Off: ~3W |
| instantaneous power | (100ms) 5750VA |
| maximum ac input current | 30AAC |
| maximum battery charging | AC: 7AAC / DC: 55ADC / Power: 1500W |
| nominal dc input voltage | 24VDC |
| output voltage regulation | ┬▒2.5% |
| peak power | (30 min) 3100VA |
| surge power | (5 sec) 5175VA |
| temperature range | Rated: -20 to 50┬░C Operating: -40 to 60┬░C Storage: -40 to 60┬░C |
| warranty | Standard 5 year, extended 10 year available |
| weight | 67 lbs |
