Description

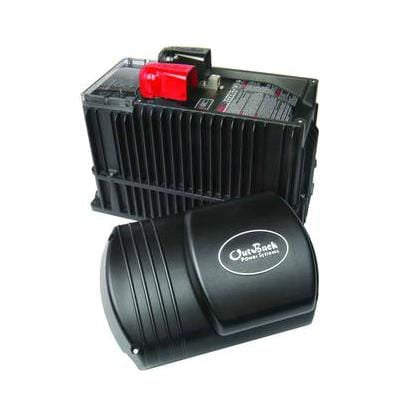

FP1 FXR3048A-01 Outback FLEXpower One FP1 FXR3048A-01 3,000 Watts 48 Volts for Off-Grid and Grid-Tie
Specifications
| accessory ports | Remote temperature sensor (included), MATE3s and HUB communications |
| ac input frequency range | 54 to 66Hz (45 to 55Hz) |
| ac input voltage range | (MATE Adjustable) 85 to 140VAC |
| ac output frequency | (selectable) 60Hz (50 Hz) |
| ac output voltage | (selectable) 120VAC ( 100 to 130VAC) |
| advanced battery charging | Flooded, gel, AGM, lithium-ion and flow chemistry |
| battery charge output | 35ADC |
| certifications | UL1741, CSA C22.2 No. 107.1, UL1778, Annex FF |
| continuous ac output current | (@ 25┬░C) 25AAC |
| continuous rating | (@ 25┬░C) 3000VA |
| dc input voltage range | 42 to 68VDC |
| efficiency | 0.93 |
| grid-interactive frequency | 106 to 132VAC |
| grid-interactive voltage range | 59.3 to 60.5Hz |
| humidity | Rating 93% |
| idle power | Full: ~34W Search: ~9W Off: ~3W |
| instantaneous power | 6000VA |
| maximum ac input current | 60AAC |
| maximum battery charging | AC: 14AAC DC: 35ADC Power: 1900VA |
| nominal dc input voltage | 48VDC |
| output voltage regulation | ┬▒2.5% |
| peak power | (30 Min) 3200VA |
| surge power | (5 Sec) 5400VA |
| temperature range | Rated: ΓÇô20 to 50┬░C Operating: ΓÇô40 to 60┬░C Storage: ΓÇô40 to 60┬░C |
| total harmonic distortion | Typical: <2% Maximum: <5% |
| warranty | Standard 5 year, extended 10 year available |
