Description

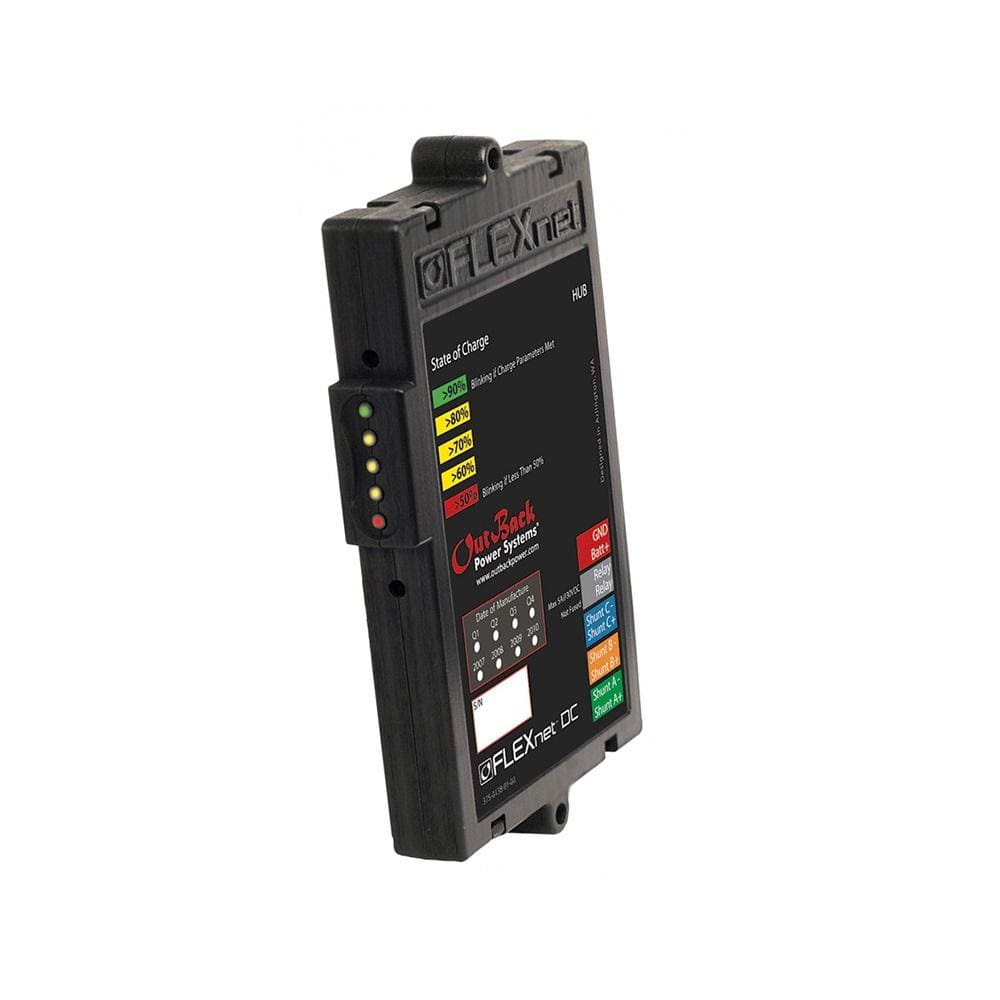

OutBack Power FN-DC DC System Monitoring Device.
Specifications
| accuracy | 0.5% of Reading +/- 2 LSDs per channel |
| battery capacity | 100 to 10,000 Amp Hours |
| battery input voltage | 8.0 to 80.0 VDC |
| battery voltage resolution | 0.1 VDC |
| current range | -1000.0 Amps to +1000.0 Amps DC |
| data logging | Most recent 128 Days |
| dimensions | 0.7 x 3.7 x 6.6ΓÇ¥ |
| display | Primary: MATE, MATE2 or MATE3 | Secondary: Five LED Indicators on front of FLEXnet DC |
| mounting | 3/4ΓÇ¥ Panel Mount Breaker Slot or Surface Mount using Built-in Mounting Bars |
| operating temperature | 0 to 50┬░C / 32 to 122┬░F |
| warranty | 5 Year |
| weight | 5 Oz |
