Description

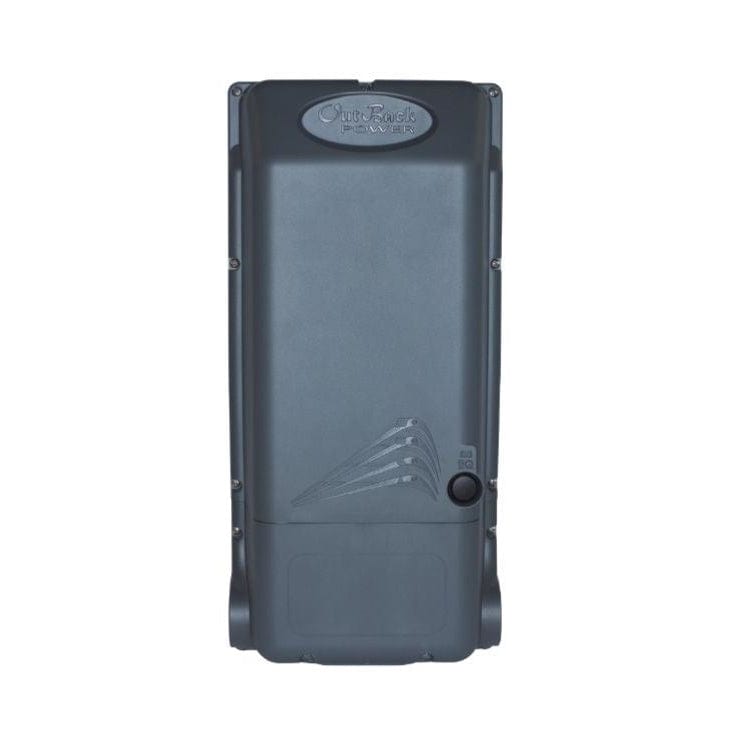

The FM100-300VDC is a 300V, MPPT Charge Controller from OutBack Power.
This product has been replaced by FM100-300VDC-AFCI
Specifications
battery temp. compensation | Adjustable from 2mV/cell/°C to 6mV/cell/°C |
certifications | UL 1741, CSA C22.2 No. 107.1, IEC 62109-1 |
charging range (output) | 20VDC to 68VDC |
charging regulation | Three-stage |
data logging | 128 Days |
dimensions | 22 x 8.8 x 6 (HxWxL) |
display | LED indicators |
efficiency | 0.96 |
equalization charging | Programmable start time, voltage set point and duration, automatic termination when completed |
maximum array (stc nameplate) | 3500W / 5250W / 7000W (charging output limited to 100A at battery voltage) |
maximum input current | 64A (Short-Circuit) |
maximum output current | 100A |
maximum pv system voltage 1 | 300VDC |
network cabling | Proprietary network system using RJ-45 modular connectors |
nominal battery voltage | 24VDC / 36VDC / 48VDC |
operating voltage range | 30 to 290VDC |
programable aux control output | 12VDC output signal which can be programmed for different control applications (maximum of 0.25ADC) |
standby power consumption | ~2.5W |
temperature range | Ambient, -25° to 60°C (-13° to 140°F), output power reduced above 25°C |
voltage regulation set points | Absorption, float, silent and equalization |
warranty | 5 Years |
weight | 18.3 Lbs |
