Description
The EnergyCell RE high capacity battery family offers an ideal solution for large capacity Valved Regulated Lead Acid (VRLA) battery requirements.

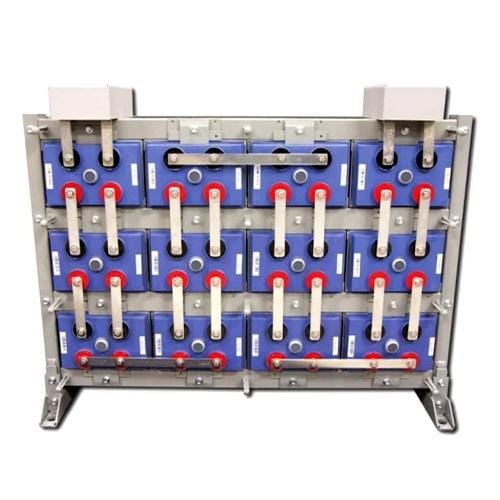

The EnergyCell RE high capacity battery’s steel can (module) design has an integral racking system, provides a cost-effective battery system with a compact, fast and easy installation process.
The EnergyCell RE high capacity battery system’s AGM technology integrates an enhanced cell design with a superior racking system. The enhanced cell uses thicker positive plates for longer life. The welded/epoxy dual post seal design provides the highest integrity seal in the industry. The large copper post design also enhances the high rate performance.
The EnergyCell RE high capacity battery provides excellent performance and service life in grid-tied, grid-interactive and off-grid renewable energy and UPS solutions.
- 1800 cycles @ 50% depth of discharge
- Space-saving 4 × 6 standard 48V system configuration
- Battery frame design allows for maximum heat dissipation
- 100% out of box initial battery capacity
- VRLA-AGM technology: 99% gas recombination efficient, no periodic watering of cells, no re-torquing of terminal connections, and no equalization charge under standard operating conditions
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
Absorb Time | 2 Hours |
Absorb Voltage (25°C) | 55.6V DC |
Cycle Life | (50% DOD, 1.75VPC): 1800 |
Discharge in Hours | (2V Ampere Hour Capacity to 1.75 Volts Per Cell @ 77°F (25°C)): 1=347, 5=555, 8=600, 20=672, 24=676, 100=810 |
Equalize Voltage | 2.32V DC |
Float Time | = Absorb Time |
Float Voltage (25°C) | 54V DC |
Max. Charge Current | (Per Battery): 148.75A |
Nominal Voltage | (Per Cell): 2V, (Per System): 24V DC / 48V DC |
Operating Temperature | (w/Temperature Compensation): –4 to 122°F (-20 to 50°C) |
Optimal Operating Temperature | 68 to 86°F (20 to 30°C) |
Product Weight (lb/kg) | 2262 / 1189.3 |
Re-Bulk Voltage3 | 24V DC / 48V DC |
Re-Float Voltage3 | 12.5V DC / 25V DC / 50V DC |
Self-Discharge Time | 6 Months @ 25°C |
System Configuration | 6W × 4h |
System Dimensions H×D×W | (in/cm): 43.44 × 23.5 × 39.40 / 110 × 59.69 × 10 |
Temp-Comp Factor | (Charging): None |
Terminal Hardware Torque | 88 in-lbs |
Terminal Type | M8 bolt, lock, flat washer |
Warranty | 3 years |
