Description

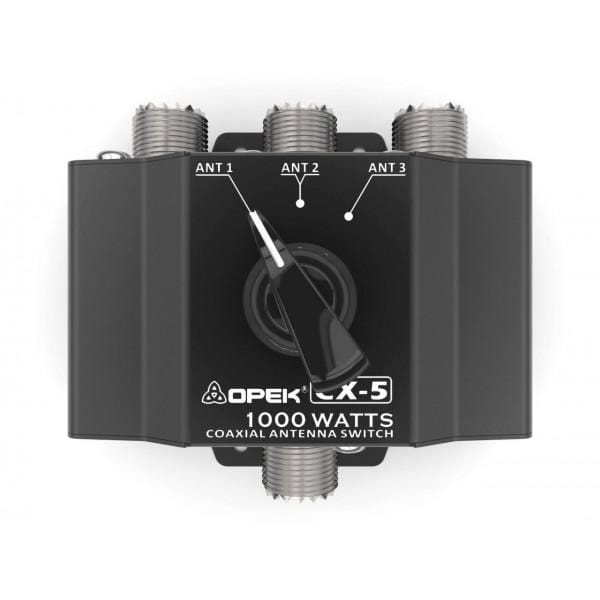

This Opex CX-5 1,000-watt coaxial antenna switch lets you split one signal to three different outputs. Equipped with a manual switcher, it crams impressive power inside the compact metal housing. You'll get all the mounts and screws you need for a successful installation.
Features:
- 3 Way Antenna Switchbox for Two Way Amateur Ham CB Marine VHF HF UHF Radio Uses.
- With SO-239 inputs That Accept Cables Having Regular PL-259 Connectors.
- 1kW 0-500Mhz Xmit Switch Either 1 Radio with up to 3 Antennas, or 1 Antenna for Up to 3 Radios
Specifications:
- Rotary Selecting Switch
- Frequency Range: Dc~500 Mhz
- Impedance: 50 Ohms
- Power Range: Dc~200 Mhz 1kw Pep
- 300~500 Mhz 500w Pep
- Isolation: <=50db
- V.s.w.r.: Dc~300 Mhz <= 1.5
- 300~500 Mhz <= 2.0
- Connectors: So-239 Uhf Jacks
- Dimensions : 93(W) X 54(H) X 83(D) Mm
