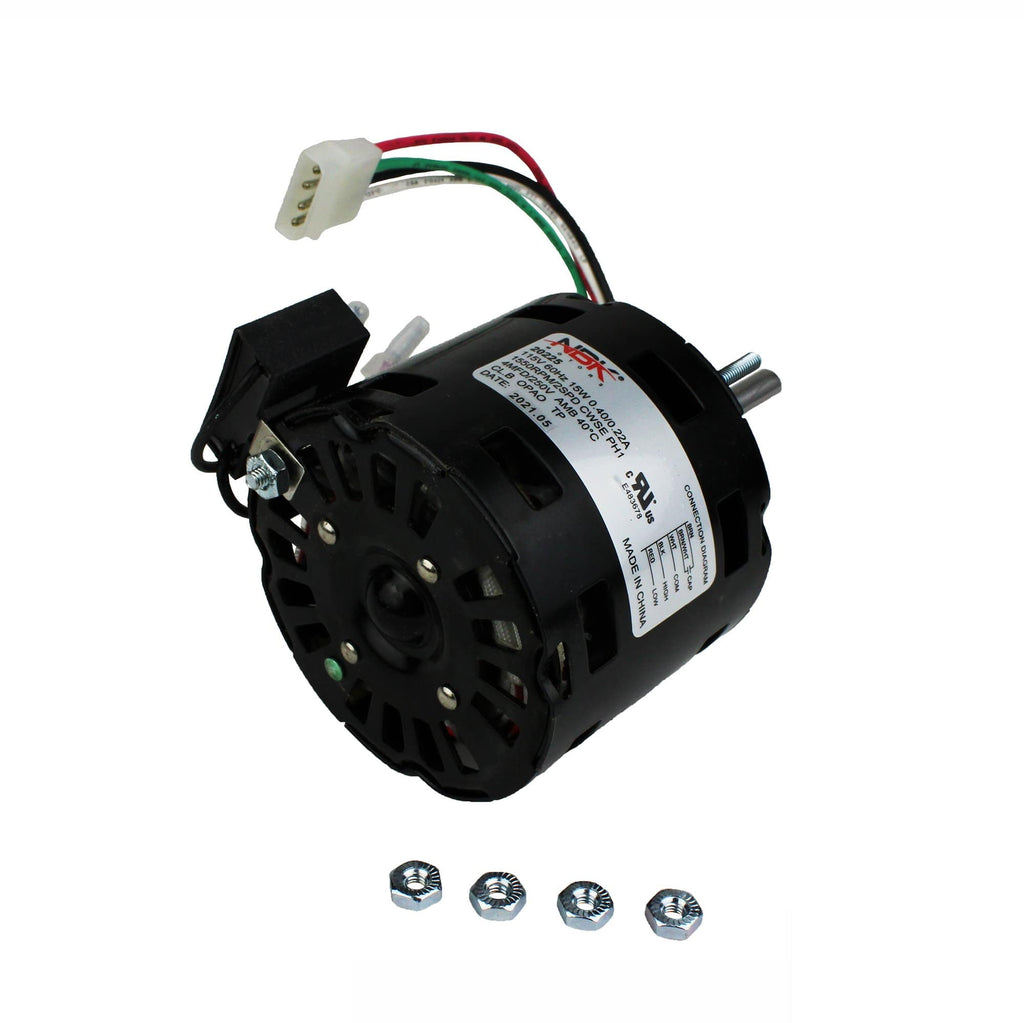

NBK 20225 Drive Motor D1100 115V, 1550/900 RPM, 1/50 Hp Replaces Fasco
Roll over image to zoom in Click on image to zoom
NBK 20225 Drive Motor D1100 115V, 1550/900 RPM, 1/50 Hp Replaces Fasco

NBK 20225 Drive Motor D1100 115V, 1550/900 RPM, 1/50 Hp Replaces Fasco

Save $95.26
NBK PartsSKU: NBK-20225
Price:
$53.24 $148.50
Stock:
In stock (18 units)
Free Shipping* (Some exclusions apply)

Description

This is an OEM replacement HVAC motor

  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End End-Frame
  • Open Shell
  • Enclosed Opposite Shaft End End-Frame
  • Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 12" Leads with Quick Connect Terminal Housing
  • Extended Studs Shaft End



Replaces / Equivalent to:

  • Fasco - D110, 7173-1580
  • Loren Cook - 7173-1580, GC/GN 142/144



Warning: Product may contain materials cautioned by California Proposition 65

Specifications

Ambient Temp 40°C
Amps 1.2/0.7A
Bearings Sleeve
Brand Fasco
Country of Origin Mexico
Diameter (In.) 3.3
Enclosure Open
H.P. 1/50
Hertz 60 Hz
Material Steel
Motor Rotation CWSE
Motor Type Shaded Pole
Motor Voltage 115V
Mounting Option Extended Studs
NEMA Frame 3.3
Overload Protection Thermally Protected
Phase Single
RPM 1500/900
Service Factor 1.00
Shaft Dimensions (In.) Dia x Lgth: 5/16 x 2-3/8
Speeds 2
