Morningstar TS-RM-2 Tristar Remore Digital Meter For Ts / Ts-Mppt

MorningStarSKU: TS-RM-2

Sale price$128 Regular price$136.52 Save $8.52
3 In stock Free Shipping

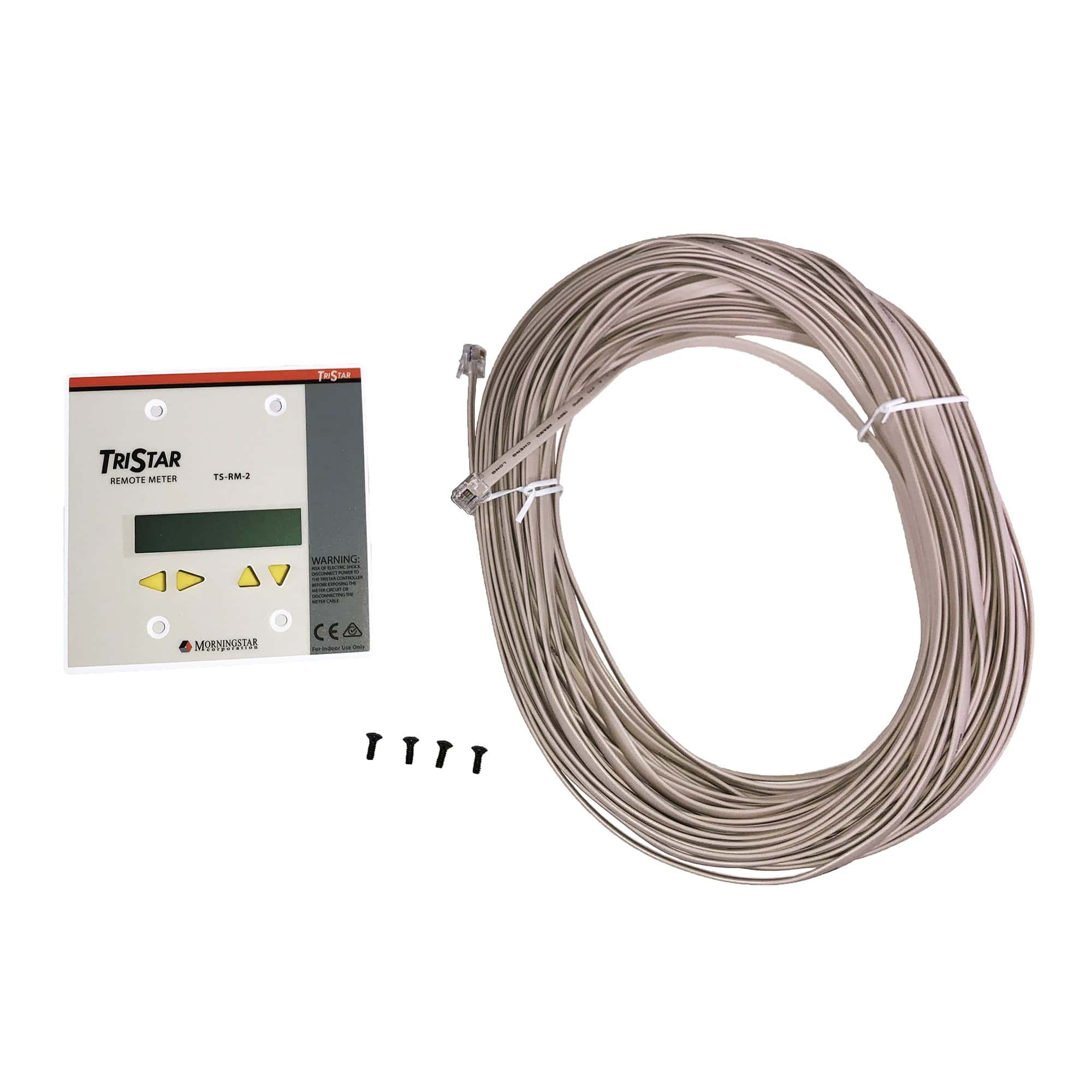

TS-RM-2 Tristar Remore Digital Meter For Ts / Ts-Mppt



Remote Digital Display for the TriStar Family Controllers. The TS-RM-2 provides the same data display as the TS-M-2, except that it ships with 30 meters of cable and a flat faceplate. These features enable convenient mounting away from the controller. The meter enables manual functions and controller diagnostics. These capabilities will increase your confidence that the system is working properly and will help you to improve system reliability, battery life, and system performance.

  • Uses standard 6 conductor RJ-11 connectors
  • TS-RM-2 fits a “double gang” electrical box and includes 30 meters (98.4 feet) of cable
  • Both data and meterbus power flow over a single cable
  • Network supports up to 15 devices and, optionally, more than one meter per system
    Networking capability
  • Displays individual controller data from up to 15 TriStars with optional Morningstar MeterHub
  • Aggregates system data to show total charge, load and battery charge/discharge state
  • Auto detects any device found on the network
  • Easy to use
  • Four directional push buttons for easy navigation of display screens
  • Backlighting to enhance readability
  • Meter may be added during initial controller installation, added as an upgrade anytime in the future or connected
  • temporarily for troubleshooting with the ability to use this same meter at other sites

Warning: Product may contain materials cautioned by California Proposition 65


operating temperature range -40 C to +60C
self consumption <0.5W, 42.5mA (backlight on)
