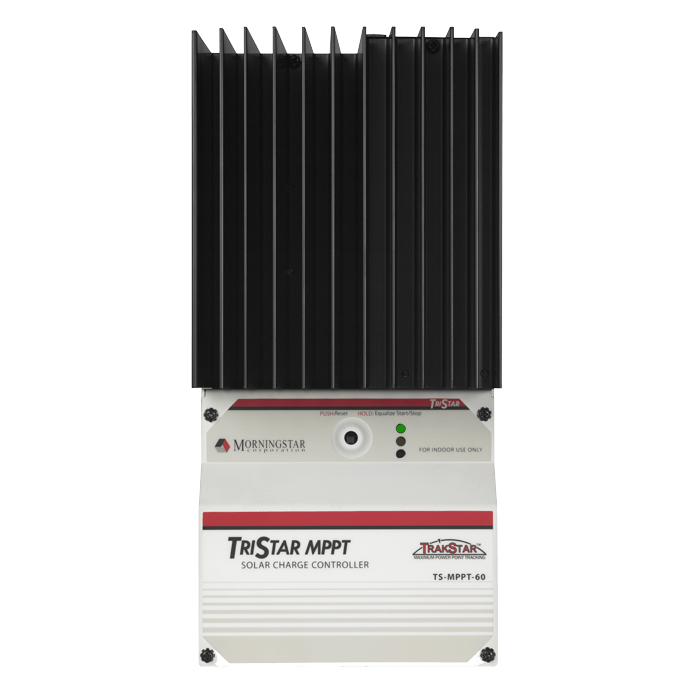

MorningStar TriStar TS-MPPT-60 Amp (12, 24, 36, 48 volts) Includes RTS

Morningstar CorporationSKU: TS-MPPT-60

Price:
Sale price$598 Regular price$747 Save $149
Stock:
4 In stock Free Shipping

Description

Morningstar TriStar TS-MPPT-60 Amp (12, 24, 36, 48 volts) Includes RTS Morningstar's TriStar TS-MPPT-60 solar controller with TrakStar Technology is an advanced maximum power point tracking (MPPT) battery charger for off-grid photovoltaic (PV) systems up to 3kW. The controller provides the industry's highest peak efficiency of 99% and significantly less power loss compared to other MPPT controllers. The TriStar TS-MPPT-60 features a smart tracking algorithm that maximizes the energy harvest from the PV by rapidly finding the solar array peak power point with extremely fast sweeping of the entire I-V curve. This product is the first PV controller to include on-board Ethernet for a fully web-enabled interface and includes up to 200 days of data logging.

The TS-MMPT-60 has many key features and benefits:

  • Better peak power point tracking than other MPPT controllers
  • Very fast sweeping of the entire I-V curve
  • Recognition of multiple power points during shading or mixed PV arrays
  • Excellent performance at sunrise and low solar insolation levels
  • Robust thermal design and no cooling fans
  • Parallel circuit design provides less stress and longer life for electronic components
  • No mechanical relays
  • Extensive electronic protections including PV short circuit protection
  • Proprietary tracking algorithm minimizes power losses
  • Low self-consumption
  • Continuous operation at full power to 45°C without need to de-rate
  • Enables system monitoring, data logging and adjustability. Uses open standard MODBUS protocol and Morningstar's MS View software.
  • Optional TriStar meter and remote meter provides detailed operating data, alarms and faults
  • Three LED's display system status
  • Up to 200 days of data logging via meters or communications ports
  • Enclosure: Type 1 (indoor and vented) IP20


For the full list of technical specifications: Click here to download the product data sheet.



Specifications

battery voltage Operating Range 8-72 volts DC
conduit knockouts M20; _, 1, 1 _ inch
dimensions 11.4" H x 5.1" W x 5.6" D (29.1 x 13.0 x 14.2 cm)
maximum battery current 60 amps
maximum self-consumption 2.7 Watts
maximum wire gauge 35 mm_ / 2 AWG
nominal maximum solar input At 12 Volts, 800 Watts. At 24 Volts, 1600 Watts. At 48 Volts 3200 Watts
nominal system voltage 12, 24, 36 or 48 volts DC
open circuit voltage solar 150 volts DC
peak efficiency 0.99
transient surge protection 4500 Watts/port
weight 9.2 lbs (4.2 kg)
