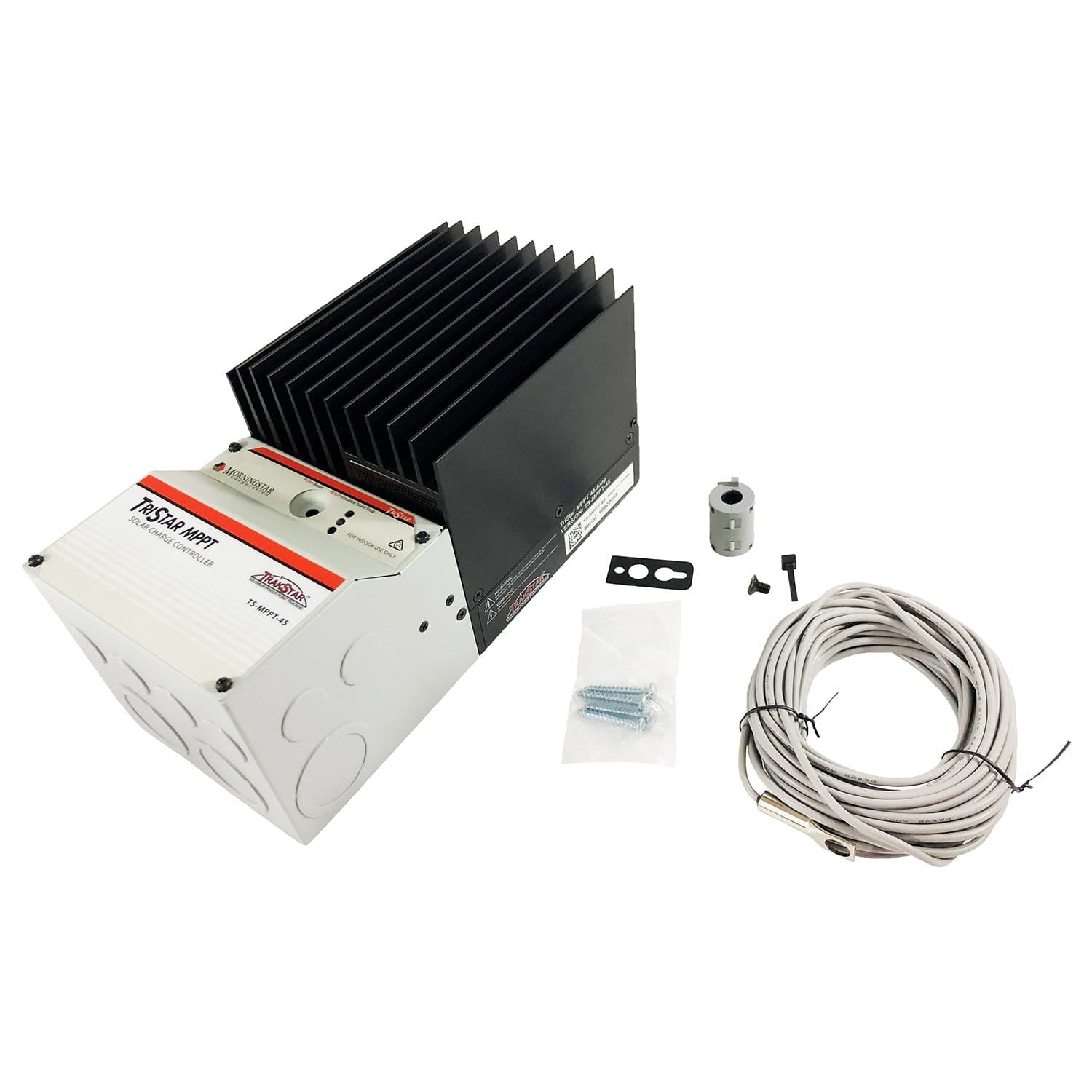

MorningStar TriStar TS-MPPT-45 Amp (12, 24, 36, 48 volts) Includes RTS
Roll over image to zoom in Click on image to zoom
MorningStar TriStar TS-MPPT-45 Amp (12, 24, 36, 48 volts) Includes RTS

MorningStar TriStar TS-MPPT-45 Amp (12, 24, 36, 48 volts) Includes RTS

MorningStarSKU: TS-MPPT-45
Price:
$532.00
Stock:
Re-stocking soon
Free Shipping* (Some exclusions apply)

Description

MorningStar TriStar TS-MPPT-45 Amp(12, 24, 36, 48 volts) Includes RTS. MorningStar's TriStar TS-MPPT-45 solar controller with TrakStar Technology is an advanced maximum power point tracking (MPPT) battery charger for off-grid photovoltaic (PV) systems up to 3kW. The controller provides the industry's highest peak efficiency of 99% and significantly less power loss compared to other MPPT controllers. The TriStar TS-MPPT-45 features a smart tracking algorithm that maximizes the energy harvest from the PV by rapidly finding the solar array peak power point with extremely fast sweeping of the entire I-V curve.

Specifications

battery voltage Operating Range 8-72 volts DC
conduit knockouts M20; _, 1, 1 _ inch
dimensions 11.4" H x 5.1" W x 5.6" D (29.1 x 13.0 x 14.2 cm)
maximum battery current 30 amps
maximum self-consumption 2.7 Watts
maximum wire gauge 35 mm_ / 2 AWG
nominal maximum solar input At 12 Volts, 600 Watts. At 24 Volts, 1200 Watts. At 48 Volts 2400 Watts
nominal system voltage 12, 24, 36 or 48 volts DC
open circuit voltage solar 150 volts DC
peak efficiency 0.99
transient surge protection 4500 Watts/port
weight 9.2 lbs (4.2 kg)
