Morningstar TS-M-2 Tristar Digital Meter For Ts And Ts-Mppt

MorningstarSKU: TS-M-2

Sale price$100 Regular price$113.60 Save $13.60
0 Re-stocking soon Free Shipping

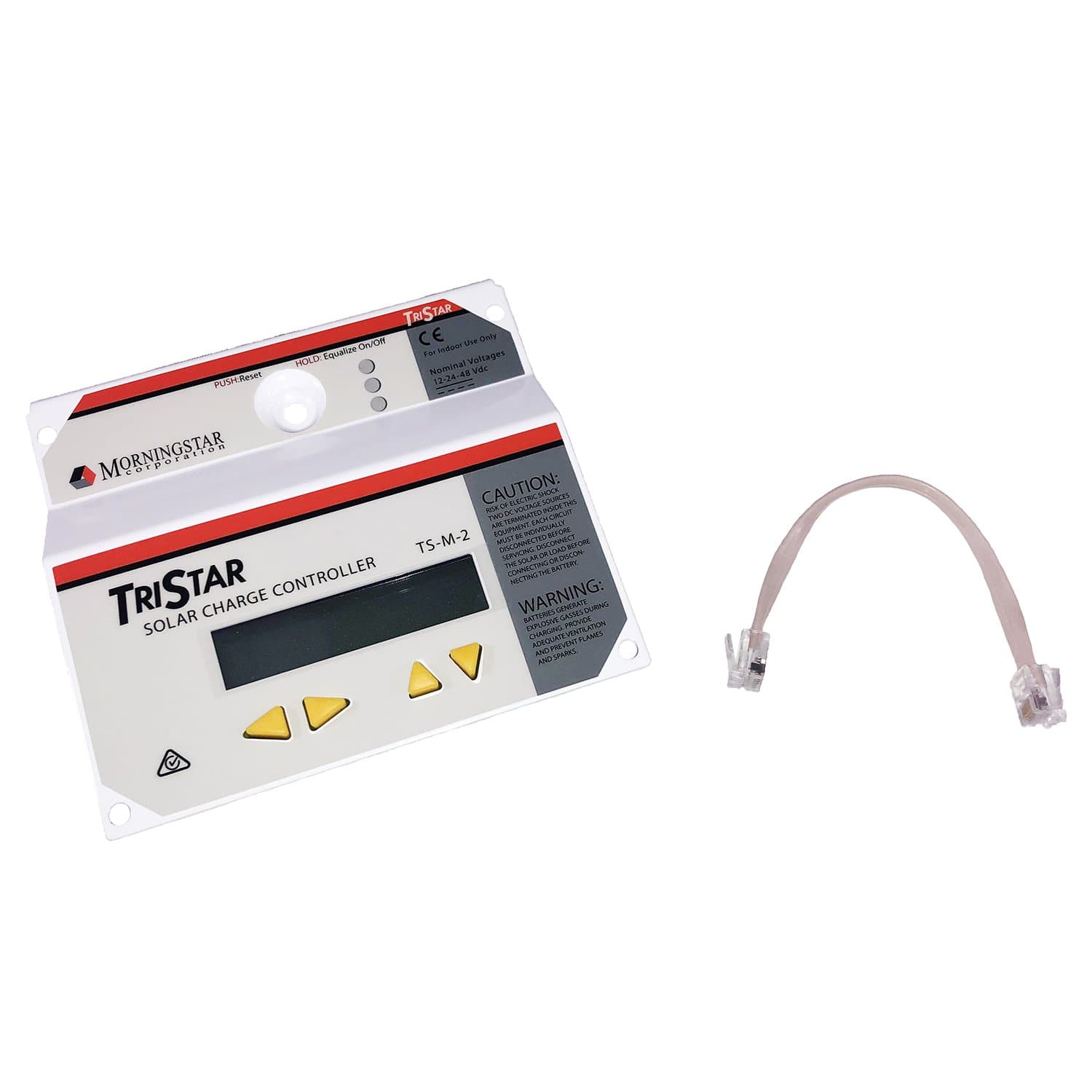

TS-M-2 Tristar Digital Meter For Ts And Ts-Mppt



On-Board Advanced Digital Display for the TriStar and TriStar MPPT Controllers. The meter will display a great deal of information about your TriStar controller and the operation of your system. In addition, the meter enables manual functions and controller diagnostics. These capabilities will increase your confidence that the system is working properly and will help you to improve reliability, battery life and system performance.

Easy to install
• Uses standard 6 conductor RJ-11 connectors
• TS-RM-2 fits a “double gang” electrical box and
includes 30 meters (98.4 feet) of cable
• Both data and meterbus power flow over a single cable
• Network supports up to 15 devices and, optionally,
more than one meter per system
Networking capability
• Displays individual controller data from up to 15
TriStars with optional Morningstar MeterHub
• Aggregates system data to show total charge, load and battery charge/discharge state
• Auto detects any device found on the network
Easy to use
• Four directional pushbuttons for easy navigation of
display screens
• Backlighting to enhance readability
• Meter may be added during initial controller
installation, added as an upgrade anytime in the future
or connected temporarily for troubleshooting with the
ability to use this same meter at other sites

Warning: Product may contain materials cautioned by California Proposition 65


minimum voltage to operate 8V
operating temperature range -20 C to +60C
self consumption 6mA - 15mA
