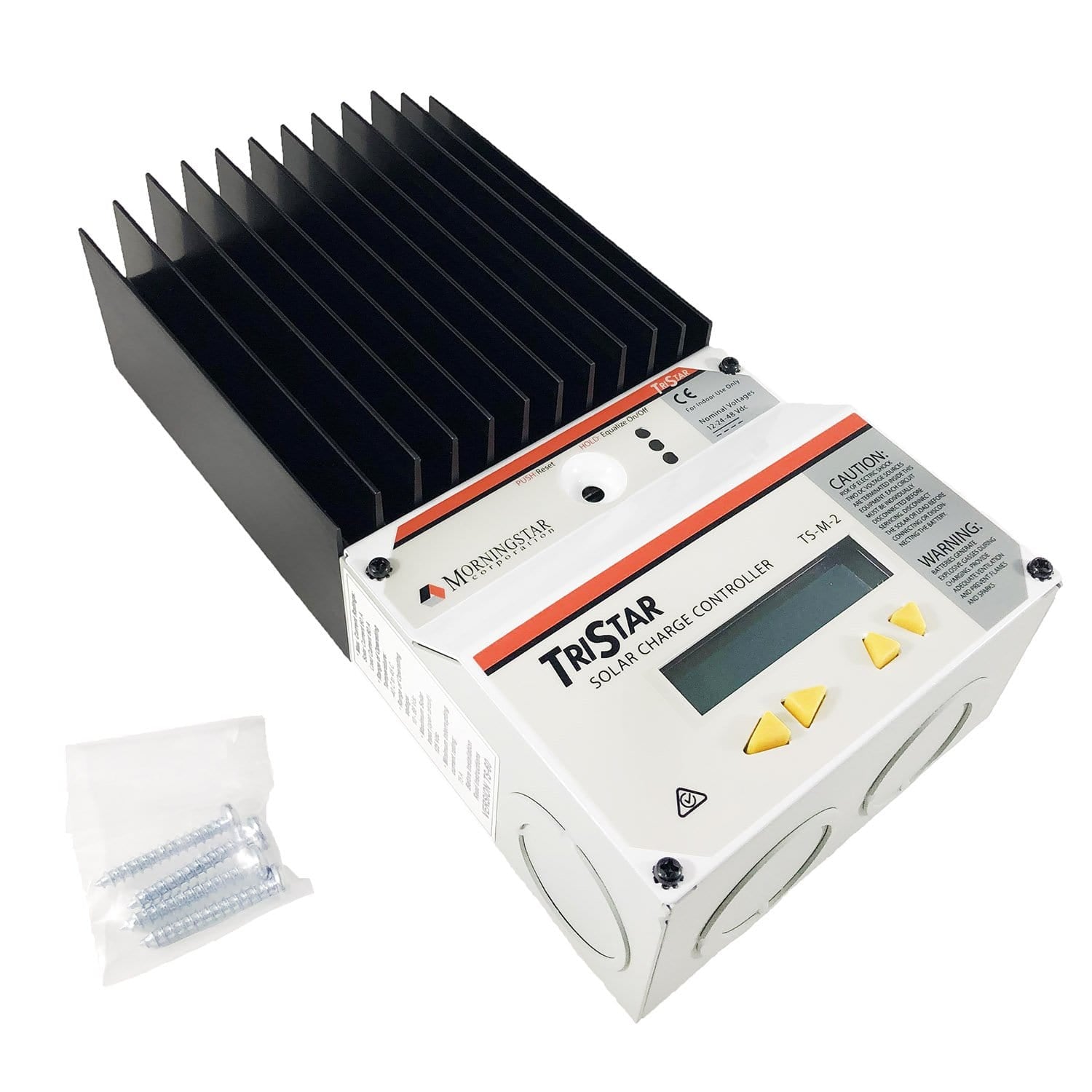

MorningStar TS-60M Tristar-60 Amp (12/ 24 Or 48v) With Meter Solar Charge Controller

MorningStarSKU: TS-60M

Price:
Sale price$347 Regular price$364.99 Save $17.99
Stock:
1 In stock Free Shipping

Description

TS-60M Tristar-60 Amp (12/ 24 Or 48v) With Meter



Features:

The TriStar™ is a three-function PWM controller for larger systems, providing reliable PWM solar battery charging or load control or diversion regulation. The controller operates in one of these modes at a time and two or more controllers may be used to provide multiple functions. The TriStar uses advanced technology and automated production to provide exciting new features at a competitive cost to regulate battery charging in home systems and professional applications. The 60 amp version is also available with a factory installed meter. “It is a Morningstar, what do you expect! It is great.”

  • Built for reliability and performance, with an oversized heatsink and overspec’d components. Fully-rated for operation at temperatures up to 45C.
  • More information with LED indicators. Optional meter displays extensive system and controller information in five languages; automatic self-test and
    reset.
  • Communications capability with RS-232 port, connects to a PC for custom settings, data logging, remote monitoring and control.
  • SNMP monitoring supported when used with Ethernet MeterBus Converter so you can view system current, voltages, and alerts in your network management system.
  • Fully adjustable with DIP switches for seven digital presets. Additional
    custom setting via RS-232.
  • Extensive electronic protection against reverse polarity, short circuits,
    overcurrent and excessive temperature.
  • Low telecom noise. DIP switch setting will change PWM to “On-Off” battery charging.
    Fanless design for long-term reliability.

Warning: Product may contain materials cautioned by California Proposition 65

Specifications

charger rate 60 Amps
minimum voltage to operate 9V
nominal battery voltage 12V, 24V, 48V
open-circuit voltage 125 V
operating temperature -40 C to +60C
voltage accuracy (12V/24V): <=0.1% +/- 50mV
