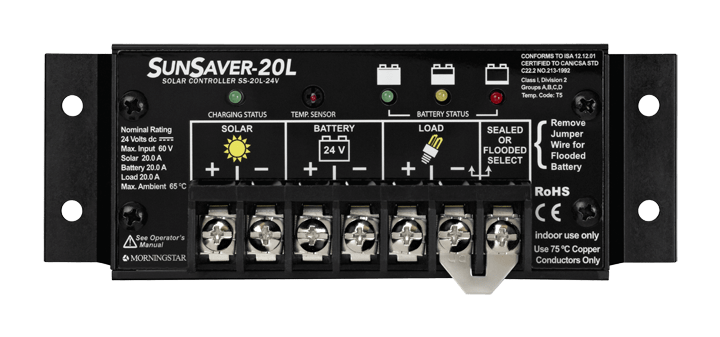

MorningStar SunSaver SS-20L-24V 20 Amp 24 Volt With LVD Solar Controller

Save $159.25
MorningStarSKU: SS-20L-24V

Sale price$115.00 Regular price$274.25
Re-stocking soon
Free Shipping* (Some exclusions apply)


MorningStar SunSaver SS-20L-24V 20 Amp 24 Volt With LVD Solar Controller. Morningstar is pleased to introduce SS-20L-24V, part of the third generation of SunSaver. Since its first market introduction in 1996, over 1 million SunSaver controllers have been installed in over 73 countries for numerous solar power systems including oil/gas, telecom and instrumentation, marine and boating, and remote homes. We have retained much of our legacy design including the same ratings, footprint and simple user interface, and have added several new and advanced high value features:MorningStar's products are built from the inside out to deliver more than twice the industry average operating life.


dimensions 6" H x 2.2" W x 1.3" D (15.2 x 5.5 x 3.4 cm)
load current 20 amps
load disconnect 23V
load in-rush capability 140 amps
low voltage disconnect Yes
lvd reconnect 25.2V
max. solar voltage 60amps
minimum battery voltage 1V
regulation voltage Sealed 28.2V
self consumption < 8 mA
solar current 20 amps
system voltage 24V
transient surge protection 1500W per connection
voltage accuracy +/- 48 mV (typical)
weight 8 oz (0.23 kg)
