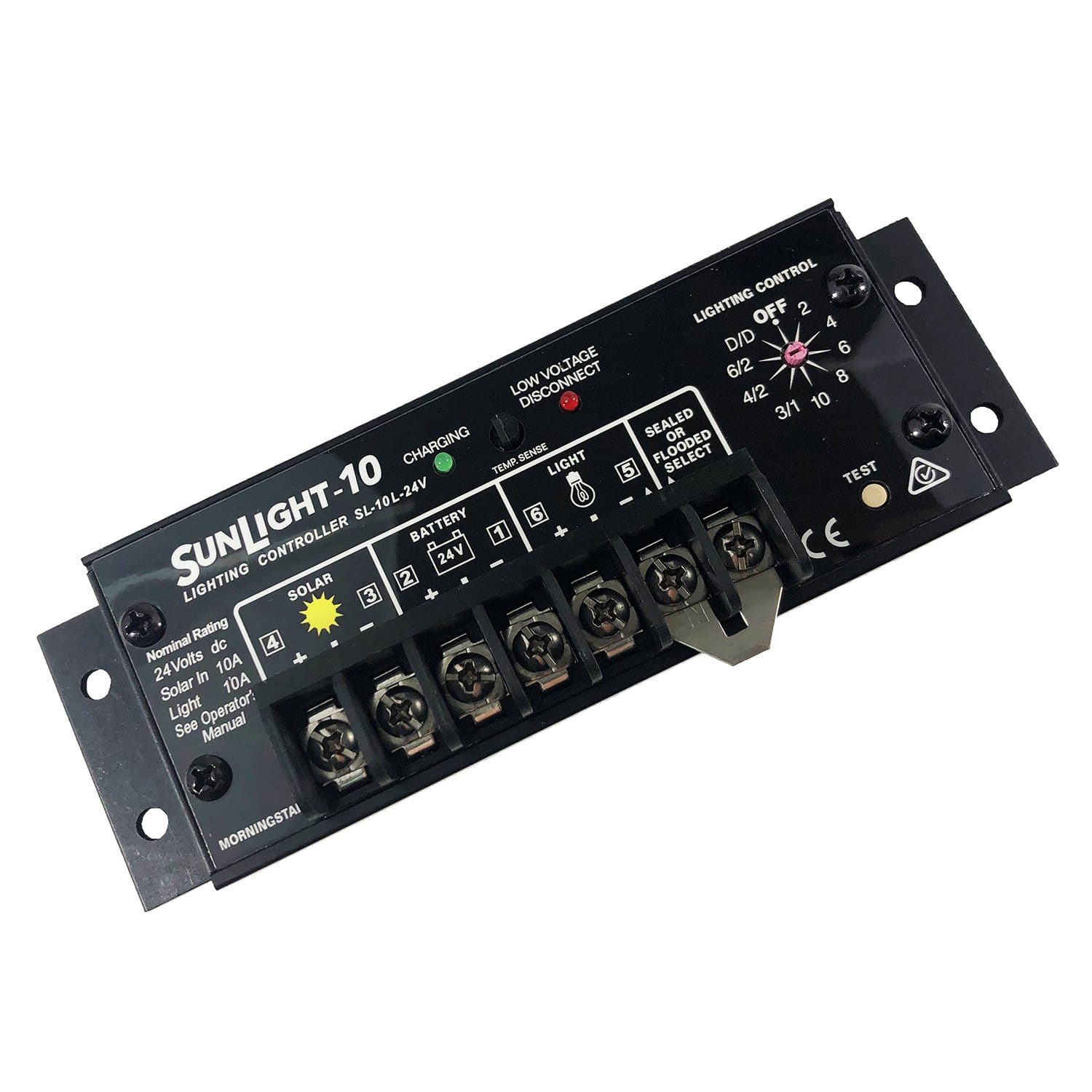

MorningStar SunLight SL-10L-24V 10 Amp 24 Volt Solar Lighting Controller. Morningstar's advanced SunLight solar lighting controller combines the SunSaver design with a microcontroller for automatic lighting control functions. This technology provides proven reliability, precise lighting control, and PWM battery charging. MorningStar's products are built from the inside out to deliver more than twice the industry average operating life.
The SL-10L-24V delivers high reliability and excellent performance and features such as:
- Microcontroller digital accuracy
- Fully automatic operation
- Ten field adjustable lighting control options
- Special on/off/on functions
- Manual test capability.
- LVD override protection
- Detects day and night using the PV array
- Suitable for all 12/24 V DC lamps
- Sealed/Flooded battery select
- Temperature compensation
- Parallel with a SunSaver for 40 amps solar
- Includes SunSaver battery charging circuit
- Marine rated terminals
- Epoxy encapsulated
To view all product specifications: Click here to download the product data sheet.
|25% current overload||5 minutes|
|dimensions||1.32" H x 2.18" W x 6.60" D (34 x 55 x 168 mm)|
|load disconnect||23.4 V|
|lvd reconnect||25.6 V|
|material||Anodized aluminum case|
|operating temperature||-40 to +85┬║C|
|regulation voltage||28.2 V (Sealed Battery)|
|temperature compensation||(mV/╦ÜC): -54|
|weight||9 oz (0.26 kg)|
|wire size||#10 AWG (5.2 mm^2)|
