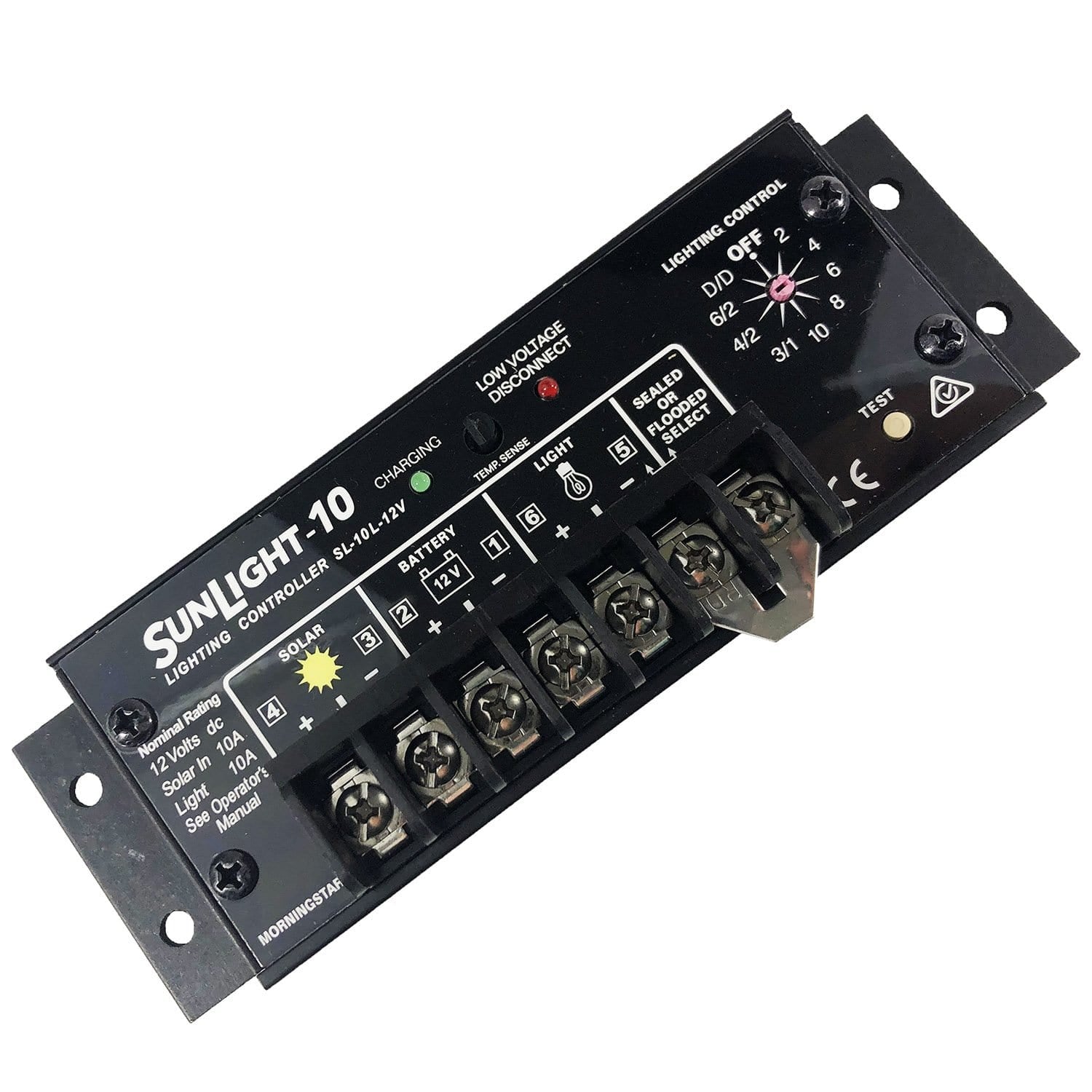

MorningStar SunLight SL-10L-12V 10 Amp 12 Volt Solar Lighting Controller

MorningStarSKU: SL-10L-12V

Price:
Sale price$94 Regular price$112 Save $18
Stock:
0 Re-stocking soon Free Shipping

Description

MorningStar SunLight SL-10L-12V 10 Amp 12 Volt Solar Lighting Controller. Morningstar's advanced SunLight solar lighting controller combines the SunSaver design with a microcontroller for automatic lighting control functions. This technology provides proven reliability, precise lighting control, and PWM battery charging. MorningStar's products are built from the inside out to deliver more than twice the industry average operating life.

The SL-10L-12V delivers high reliability and excellent performance and features such as:

  • Microcontroller digital accuracy
  • Fully automatic operation
  • Ten field adjustable lighting control options
  • Special on/off/on functions
  • Manual test capability.
  • LVD override protection
  • Detects day and night using the PV array
  • Suitable for all 12/24 V DC lamps
  • Sealed/Flooded battery select
  • Temperature compensation
  • Parallel with a SunSaver for 40 amps solar
  • Includes SunSaver battery charging circuit

Mechanical:

  • Marine rated terminals
  • Epoxy encapsulated


To view all product specifications: Click here to download the product data sheet.



Specifications

25% current overload 5 minutes
dimensions 1.32" H x 2.18" W x 6.60" D (34 x 55 x 168 mm)
load disconnect 11.7 V
lvd reconnect 12.8 V
material Anodized aluminum case
operating temperature -40 to +85˚C
regulation voltage 14.1 V (Sealed Battery)
self consumption 8mA
temperature compensation (mV/˚C): -27
weight 9 oz (0.26 kg)
wire size #10 AWG (5.2 mm^2)
