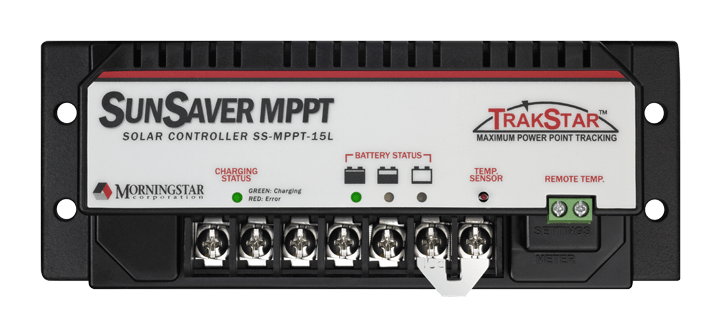

MorningStar Sunsaver SS-MPPT-15L 15 Amp (12/24 volts) Solar Controller

MorningStarSKU: SS-MPPT-15L

Price:
Sale price$248 Regular price$304 Save $56
Stock:
0 Re-stocking soon Free Shipping

Description

MorningStar Sunsaver SS-MPPT-15L 15 Amp (12/24 volts). MorningStar's SunSaver MPPT solar controller with TrakStar Technology is an advanced maximum power point tracking battery charger for off-grid PV systems.

The TS-MPPT-60 has many key features and benefits:

  • Peak efficiency of over 97%, meaning almost no power loss.
  • Excellent performance at sunrise and low solar insolation levels
  • Enables the use of high voltage and thin film modules for off-grid battery charging.
  • Provides a means to use up to a 36V PV array to charge either a 24V or 12V battery
  • Robust thermal design and no cooling fans
  • Less expensive than other MPPT controllers and is affordable in smaller PV systems up to 400Wp. Allows system costs to be reduced by down-sizing the PV array, using on-grid or thin film modules and decreasing cable sizes.
  • Up to four programmable timer sequences for PV lighting applications.
  • Mechanical dimensions are less than other MPPT controllers, making it easier to install in equipment enclosures.
  • Efficient electronics, a conservative thermal design and tropicalization result in high reliability and long life.
  • Fully adjustable user selection via on-board switches or PC connection.
  • Efficient MPPT tracking and 4-stage charging increases battery life.
  • The status LED's and optional meter provide extensive controller and system data.
  • Records key operating parameters of the PV system and includes 30 days of data logging
  • Enclosure: Die cast aluminum with plastic cover

For the full list of technical specifications: Click Here.



Specifications

battery voltage Operating Range 7-36 volts DC
conduit knockouts M20; _, 1, 1 _ inch
dimensions 6.6" H x 2.5" W x 2.9" D (16.9 x 6.4 x 7.3 cm)
max. pv open circuit voltage 75 volts DC
maximum battery current 15 amps
maximum self-consumption 35 milliamps
nominal battery voltage 12 or 24 volts DC
nominal max. pv input With 12 volt battery, 200 Watts. With 24 volt battery, 400 Watts
output rating 15 amps load control
peak efficiency 0.975
power terminal 16mm^2 / #6 AWG
transient surge protection 4 X 1500 Watts
weight 1.3 lbs (0.60 kg)
