Description

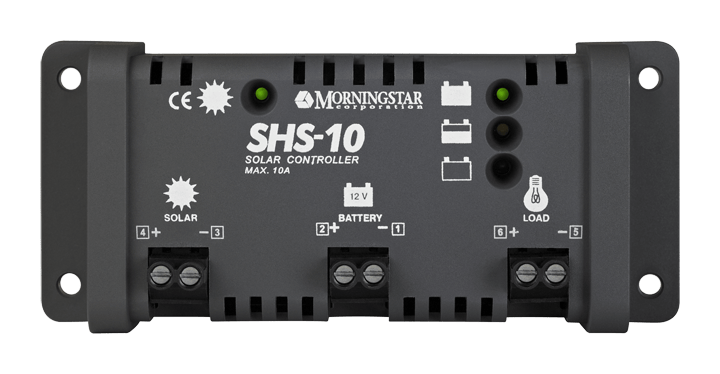

MorningStar SHS-10 Solar Controller. Morningstar's well-known high quality and reliability is now available in a low cost solar controller. The SHS-10 Controller is ideal for rural electrification systems with one to three solar panels. MorningStar's products are built from the inside out to deliver more than twice the industry average operating life.
Specifications
| dimensions | 6" H x 2.6" W x 1.4" D (15.1 x 6.6 x 3.6 cm) |
| low voltage disconnect | 11.5 Volts |
| low voltage reconnect | 12.6 Volts |
| operating temperature | -25┬░C to +50┬░C |
| regulation voltage | 14.3 V |
| self consumption | 8mA |
| terminals | For wire sizes to 4 mm2 |
| weight | 4 oz (113 g) |
