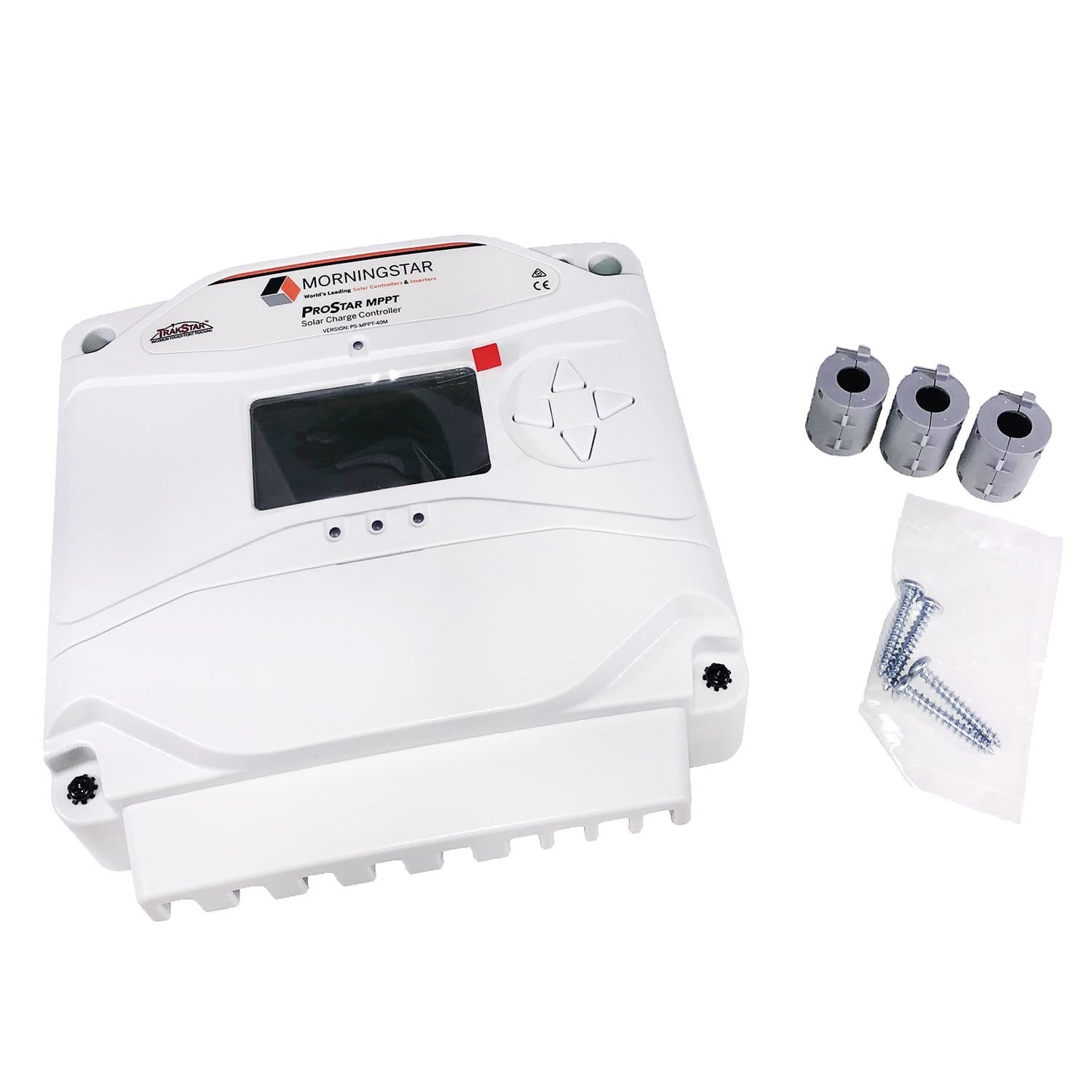

MorningStar PS-MPPT-40M Prostar Mppt 40 Amp With Meter (12/ 24v) Solar Charge Controller

MorningStarSKU: PS-MPPT-40M

Price:
Sale price$497 Regular price$514.99 Save $17.99
Stock:
0 Re-stocking soon Free Shipping

Description

PS-MPPT-40M Prostar Mppt 40 Amp With Meter (12/ 24v)



Features:

Prostar MPPT™ solar charge controller is an advanced maximum power point tracking (MPPT) battery charger for off-grid photovoltaic (PV) systems up to 1100 watts. All versions include load control and TrakStar™ Technology to maximize PV efficiency and energy harvest.

The ProStar design has been proven in over two decades of use in the world’s most demanding installations—and ProStar today reflects Morningstar’s policy of continuous improvement through regular upgrades and enhancements. Because Morningstar’s employee-owned culture never “rests on success,” ProStar customers can own both a legend and the latest in a single product.

  • High Reliability – conformally coated circuit board, corrosion resistant terminals, premium high-frequency CoilCraft inductors, over-spec’d components, transient surge suppression, and lowest published failure rate in the industry.
  • Automatic PV Based Lighting Control – field adjustable, multi-event load control enables powerful options for PV lighting systems.
  • Maximizes Energy Harvest – using TrakStar MPPT Technology to determine and adjust to the true maximum power point as solar insolation changes throughout the day.
  • MODBUS Communications – Solar Industry Standard MODBUS communications protocol allows for easy programming, control, remote data access and charge synchronization.
  • SNMP Monitoring – when used with the EMC-1 accessory to enable your network management systems to display key solar power metrics and alert/fault codes.
  • High Efficiency – at low, medium, and high output power levels to maximize energy harvest and minimize heat buildup inside the controller.
  • High Strength – polycarbonate case and extruded aluminum heatsink.
    Data Logging – up to 256 days of detailed power and load data.
  • Self Diagnostics – continuous monitoring and reporting of any errors through its status LED’s, optional display or communication port.
  • Low Noise Design – meets US Federal Communications Commission Class B specifications.
  • Meter – allows adjustments to charging, lighting, and load control settings without a computer.
  • Fanless design for long-term reliability–no moving parts to fail, no dirt and debris sucked into the controller, and no parasitic load to reduce efficiency.

Warning: Product may contain materials cautioned by California Proposition 65

Specifications

battery voltage 10-35V
capacitor shape -40 C to +60C
charger rate 40 Amps
efficiency 0.98
max power 12 volt battery: 550W @45C, 24 volt battery: 1100W @60C
nominal battery voltage 12V or 24V
time delay power up 128 sec. 120V
voltage accuracy <=0.1% +/- 50mV
