Morning Star HUB-1 Corporation Meter Hub

Morning StarSKU: HUB-1

Price:
Sale price$101.87 Regular price$109.99 Save $8.12
Stock:
2 In stock Free Shipping

Description

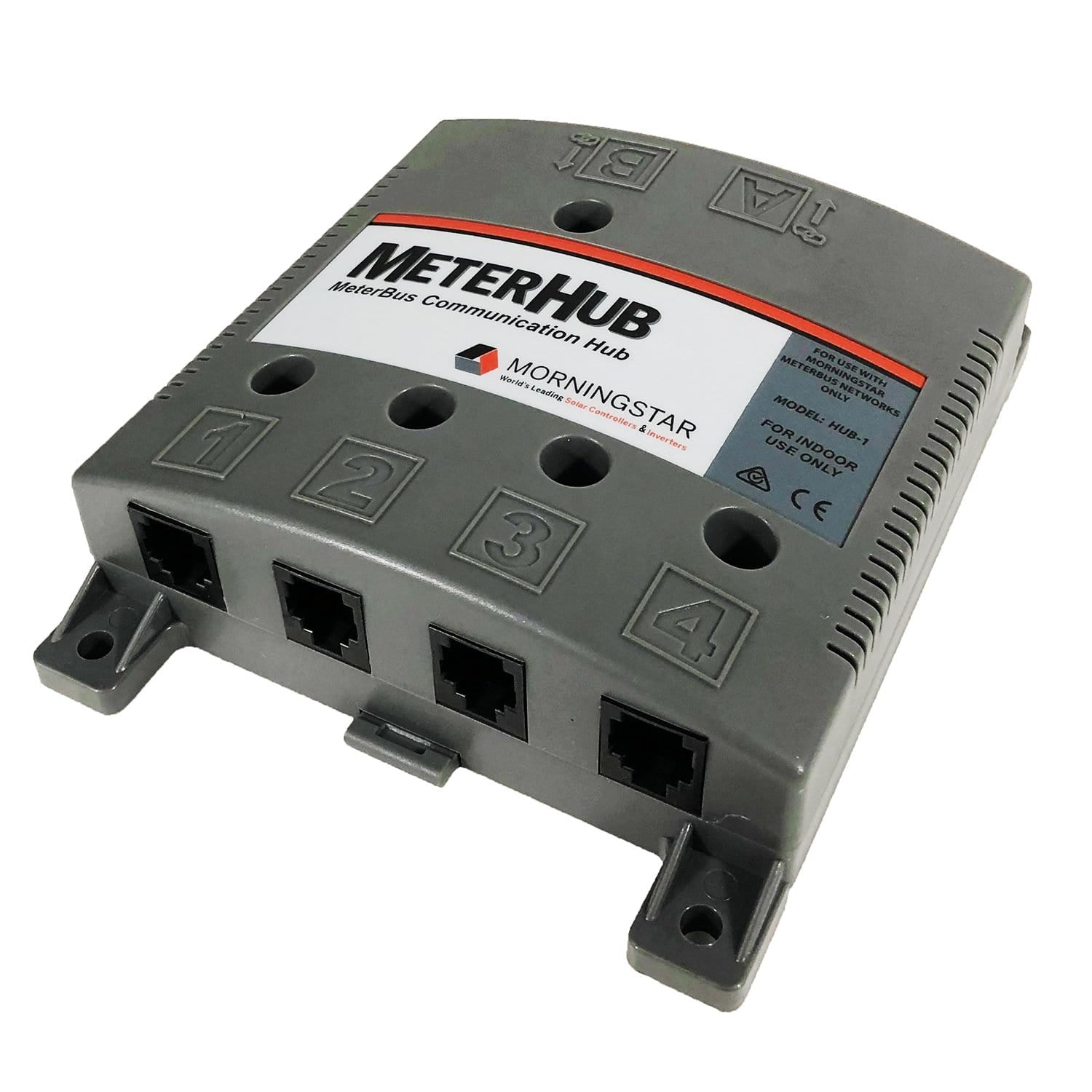

The Morning Star HUB-1 is a corporation meter hub allowing a maximum of 15 Morningstar products on 1 MeterBus network.

Allows the use of multiple controllers with only one TriStar Meter. Both single controller data (TriStar #1, TriStar #2…) and aggregated data will display for the whole system. Multiple controllers may share one Relay Driver while fully utilizing all 4 channels of the driver for separate functions (load disconnects, alarms, generator starts).

15 Morningstar products can be used on only 1 MeterBus network using the hub. MeterHub electrically isolates devices supplying power to the network. This prevents network damage if grounded. Proper network connection to each port is indicated through 5 status LED’s. Wall mounting and DIN rail mounting are both viable options.

Included:

  • MeterHub Typical Network Configuration
  • Operator’s Manual
  • Five Meterbus RJ-11 cables (each 1 meter)
  • Four mounting screws

Compatibility:

  • ProStar™ (Gen3)
  • SunSaver-MPPT™
  • TriStar™
  • TriStar-MPPT™
  • TriStar Meter-2™
  • TriStar Remote Meter-2™
  • Relay Driver™

Certifications

  • CE Compliant
  • ETL Recognized (UL1741)
  • RoHS Compliant
  • Manufactured in a Certified ISO 9001 Facility

Specifications

ambient temperature -40┬░C to +60┬░C
compatible din rail 35 mm Standard
dimensions 5.3 x 4.3 x 1.5 Inch
enclosure Type 1 (Indoor & Vented)
humidity 100% Non-Condensing
minimum isolation (Ports 1-4) 500 Volts
port connections RJ-11, Gold Plated
self-consumption (Per Port) 8 mA
storage temperature -55┬░C to +85┬░C
tropicalization Conformal Coating-Printed Circuit Board
weight 0.41 Ibs
