Description

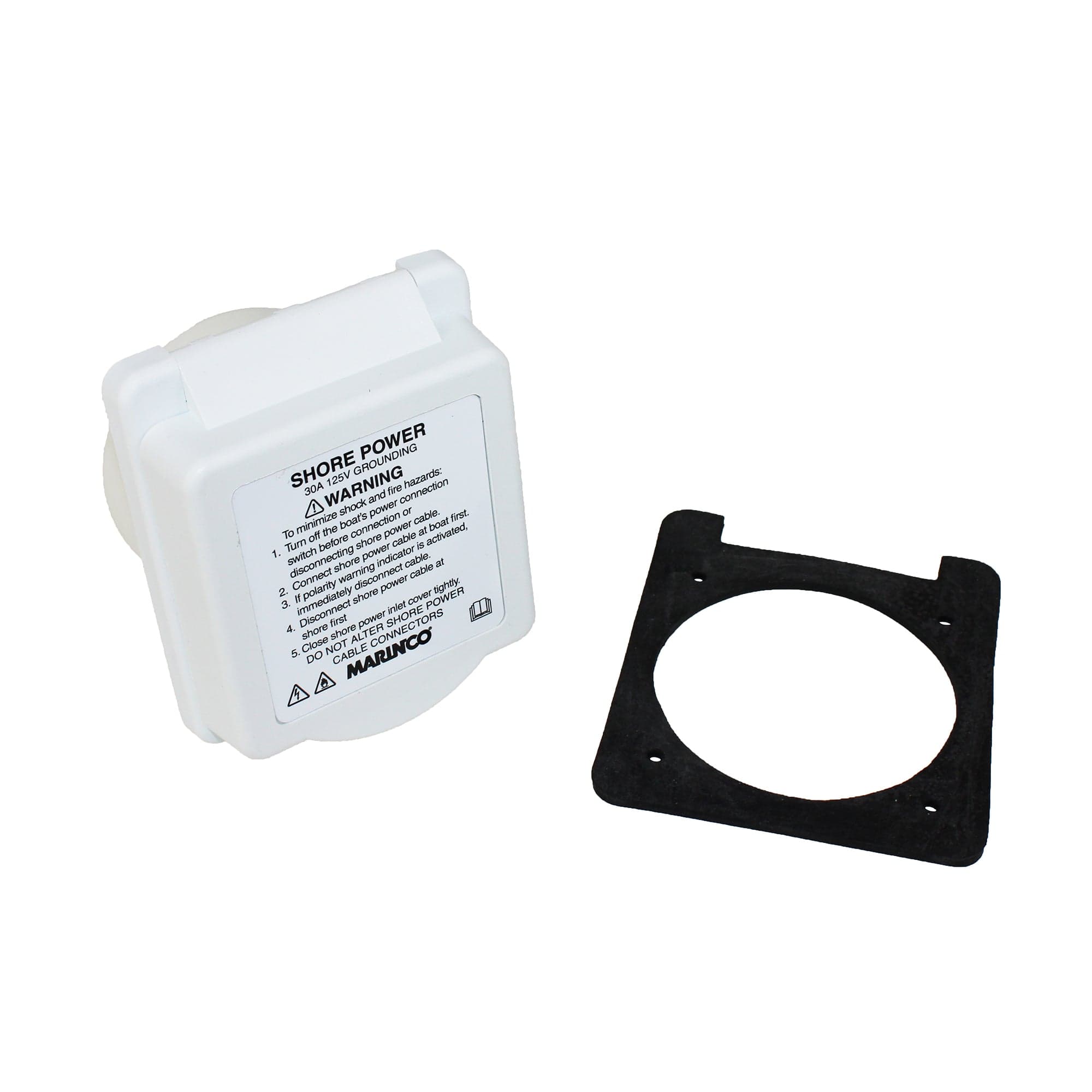

This is a 30A 125V power inlet featuring UV stabilized glass-filled polyester construction for long-lasting strength. The robust construction and corrosion-resistance provides long life in harsh marine environments. Technical features are designed to make them easy to install and easy to use.
- ABYC Shore Power
- Warning label on cap
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| Amps | 30A |
| Cap & Bezel Material | Polyester |
| Color | White |
| Contact Material | Brass |
| Enclosure | Provided. Has strain relief. |
| Listings | UL listed, File E57672, CSA certified, File 81290_0_000, Complies with ABYC and Coast Guard Standards |
| Mounting screws | Not provided. No. 8 pan head recommended |
| Plug body Material | Nylon |
| Rear enclosure | Polyester with a UL flammability of 94V-0 |
| Terminals | Brass, Clamp-type. Accommodates 10 AWG and 8 AWG wire. |
| Voltage | 125 volts |
