Description

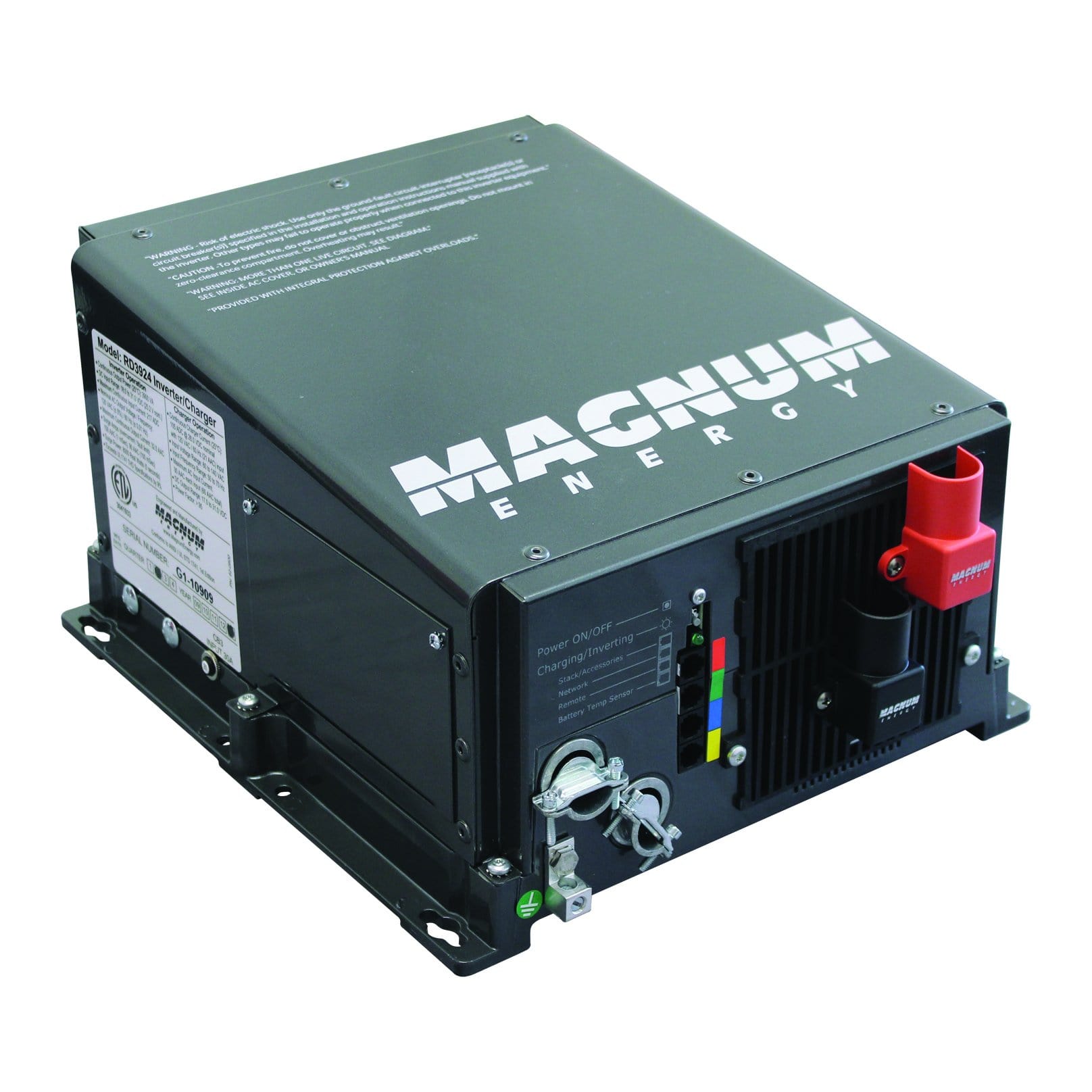

The RD3924 Inverter / Charger, part of Magnum's RD Series, is part of a new generation of modified sine wave inverter designed specifically for renewable energy use.
Specifications
| continuous output power | at 25 degrees C: 3900 VA, 105 ADC |
| dimensions | 13.75"H x 12.65"W x 8.0"D (34.9 cm x 32.1 cm x 20.3 cm) |
| efficiency | 0.92 |
| input current at rated output | (AC amps): 29 |
| input voltage | 24 Volts |
| input voltage range | 18 - 32 VDC |
| maximum continuous input power | 260 ADC |
| max operating altitude | 15,000 (4570 m) |
| nominal ac output voltage | 120 VAC - 5% |
| nonoperating temperature | -40 degrees C to +70 degrees C (-40 degrees F to 158 degrees F) |
| no load | (120 VAC output, typical): 25 watts |
| operating humidity | 0 to 95% RH non condensing |
| operating temperature | -20 degrees C to +60 degrees C (-4 degrees F to 140 degrees F) |
| output frequency and accuracy | 60 Hz - 0.1 |
| peak efficiency | 0.93 |
| power factor | > 0.95 |
| search mode | 5 watts |
| transfer relay rating | 2 legs at 30 A for 120 V/30 A or 240 V/60 A service |
| transfer time | 16 msecs |
| type | Modified Sine Wave |
| wattage | 3900 Watts |
| waveform | Modified Sine Wave |
| weight | 53 lb (16.9 kg) |
