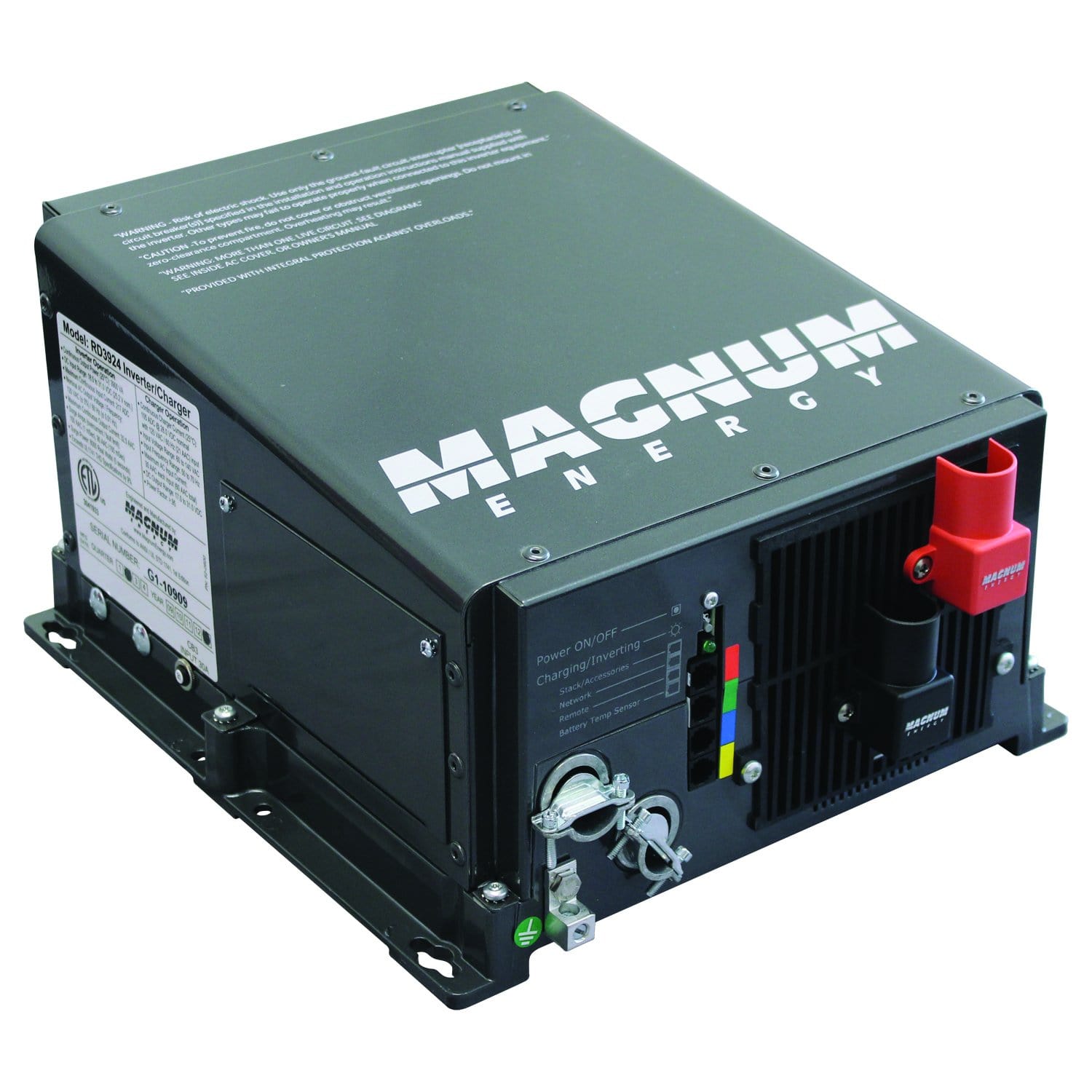

Magnum RD1824 1800 Watt 24 Volt Modified Sine Wave Inverter / Charger

          Be the first to write a review
You Pay $765.64
$1,289.00 Save 41%
Free Shipping
5 In Stock!

Would you like to calculate shipping for this item?

The RD1824 Inverter / Charger, part of Magnum's RD Series, is part of a new generation of modified sine wave inverter designed specifically for renewable energy use. See the details tab for more information.

The RD1824 is powerful, easy-to-use, and best of all, cost effective. Magnum's PFC charger is built into all of their inverter chargers. It uses less energy from a generator than a standard charger - using 25-30% less AC current than standard chargers. All RD Series models are ETL Listed to the stringent requirements of UL 1741 (USA only), ensuring that the inverter is safe and reliable. Install the RD1824 in four easy steps: simply connect the inverter's output to your distribution circuits or electrical panel, connect your power cable (AC) to the inverter's easy-to-reach terminal block, connect the batteries, and switch on the power.Inverter Specifications:

  • 1 msec surge current (amps AC): 70
  • 100 msec surge current (amps AC): 40
  • 5 sec surge power (real watts): 4000
  • 30 sec surge power (real watts): 3300
  • 5 min surge power (real watts): 2850
  • 30 min surge power (real watts): 2400
  • Five stage charging capability: Bulk, Absorb, Float, Equalize (requires remote), and Battery Saver
  • Battery temperature compensation: Yes, 15 ft Battery Temp Sensor standard
  • Internal cooling: 0 to 120 cfm variable speed drive using dual 92mm brushless DC fans
  • Overcurrent protection: Yes, with two overlapping circuits
  • Overtemperature protection: Yes on transformer, MOSFETS, and battery
  • Conformal coating on PCB's for corrosion protection: Yes
  • Powder coated chassis & top for corrosion protection: Yes
  • Stainless steel fasteners for corrosion protection: Yes
  • Listings: ETL listed to UL1741 (USA only)
  • Warranty: Two years
  • Mounting: Shelf or wall (vents up)



  • Input voltage range : 18 - 32 VDC
  • Nominal AC output voltage : 120 VAC - 5%
  • Output frequency and accuracy : 60 Hz - 0.1
  • Continuous Output Power : at 25 degrees C: 1800 VA, 50 ADC
  • Input Current : 120 ADC (Maximum Continuous)
  • Peak efficiency : 94%
  • Transfer Time : 16 msecs
  • Search mode : 5 watts
  • No load : (120 VAC output, typical): 12 watts
  • Waveform : Modified Sine Wave
  • Efficiency : 85% (Charger)
  • Power Factor : > 0.95
  • Input current at rated output : (AC amps): 15
  • Transfer Relay Rating : 2 legs at 30 A for 120 V/30 A or 240 V/60 A service
  • Operating Temperature : -20 degrees C to +60 degrees C (-4 degrees F to 140 degrees F)
  • Nonoperating temperature : -40 degrees C to +70 degrees C (-40 degrees F to 158 degrees F)
  • Operating humidity : 0 to 95% RH non condensing
  • Dimensions : 13.75"H x 12.65"W x 8.0"D (34.9 cm x 32.1 cm x 20.3 cm)
  • Weight : 35 lb (16.9 kg)
  • Max operating altitude : 15,000 (4570 m)
  • Output Voltage : 24 Volts
  • Wattage : 1800 Watts
  • Type : Pure Sine Wave
