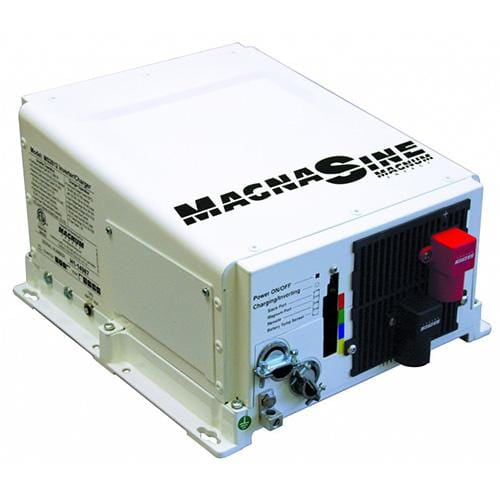

Magnum MS4348PE 4300 Watt 48 Volt Pure Sine Wave Inverter European Model 230VAC

Sensata TechnologiesSKU: MS4348PE

Price:
Sale price$1,752.60
Stock:
In stock (5 units)
Free Shipping* (Some exclusions apply)true

Description

This is the MS4348PE 48V 4300W 230VAC Inverter Charger - European Model, part of the MS-PE 230V Series from Magnum Energy. It is a pure sine wave inverter designed specifically for the most demanding renewable energy applications.

This is the European Model

  • The ME-ARTR Router is Required for Parallel Stacking the MS-PE Series.
  • Versatile Mounting
  • Lightweight
  • Pure Sine Wave
  • Multiple Ports
  • Accessible Design
  • Convenient Switches
  • Parallel Stacking
    • You can parallel up to four inverter/chargers for up to 17.2kw of power at 230V.
  • Power Factor Corrected (PFC) Charger
    • PFC charger is built in. It uses less energy from a generator than a standard charger - using 25-30% less AC current than standard chargers.
  • Safe and Reliable
    • The MS-PE Series is listed to the stringent requirements of CE for renewable energy installations.

Warning: Product may contain materials cautioned by California Proposition 65

Specifications

continuous output power at 25 degrees C: 4300 VA, 55 ADC
dimensions 15.0"H x 6.5"W x 5.0"D (38.1 cm x 16.5 cm x 12.7 cm)
efficiency 88% (Charger)
input current 143 ADC (Maximum Continuous)
input current at rated output (AC amps): 16
input voltage 48 Volts
input voltage range 36 - 64 VDC
max operating altitude 15,000 (4570 m)
nominal ac output voltage 230 VAC - 5%
nonoperating temperature -40 degrees C to +70 degrees C (-40 degrees F to 158 degrees F)
no load (120 VAC output, typical): 28 watts
operating humidity 0 to 95% RH non condensing
operating temperature -20 degrees C to +60 degrees C (-4 degrees F to 140 degrees F)
output frequency and accuracy 50 Hz - 0.4 Hz
peak efficiency 0.91
power factor > 0.95
search mode 10 watts
total harmonic distortion < 5%
transfer relay rating 30 AAC
transfer time 20 msecs
type Pure Sine Wave
wattage 4300 Watts
waveform Pure Sine Wave
weight 55 lb (25 kg)
