Description

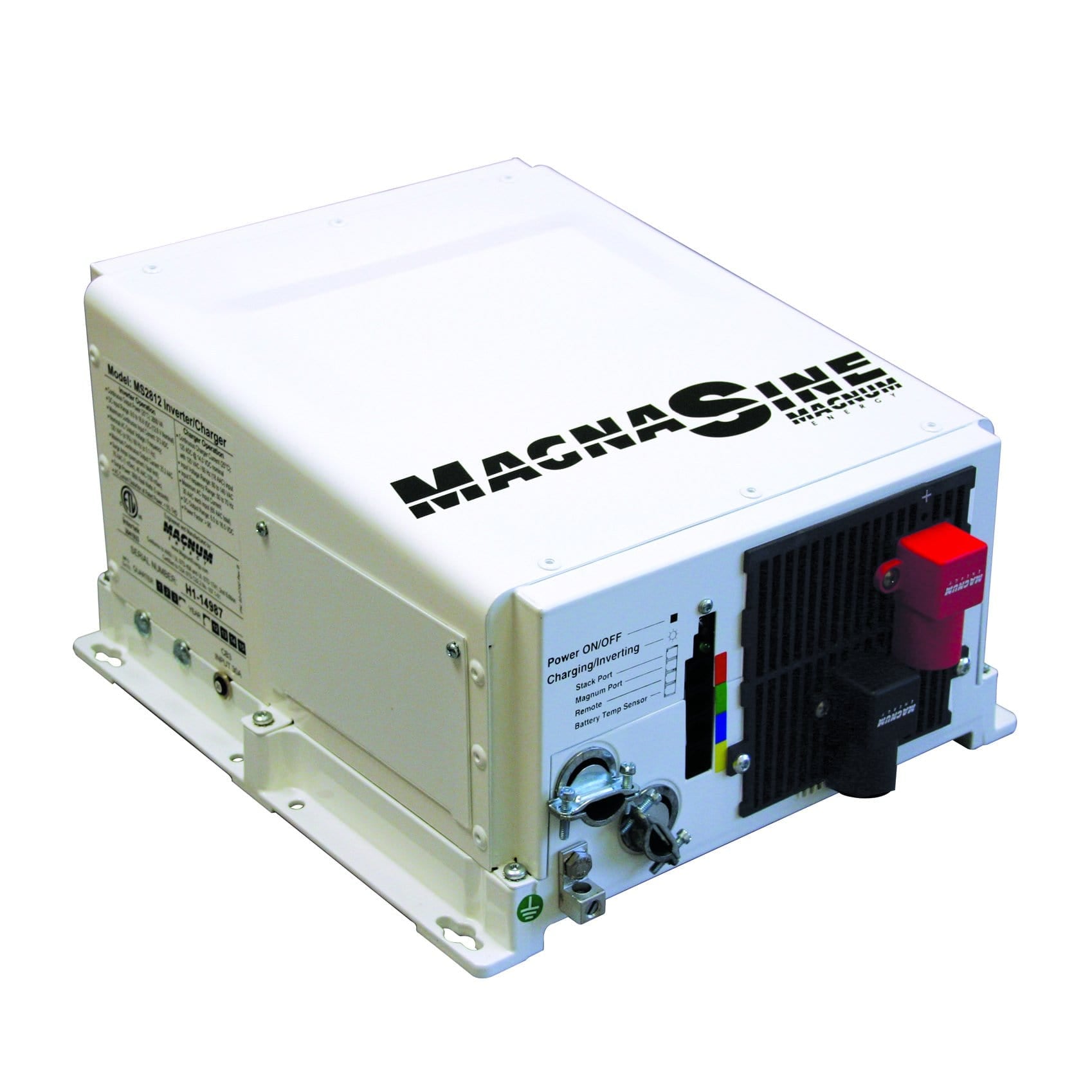

Magnum Energy now offers the MS3748AEJ Inverter/Charger, part of the MS-AEJ Series, for 120/240 VAC/50 Hz installations (Jamaica).
Specifications
| continuous output power | at 25 degrees C: 4300 VA, 60 ADC |
| dimensions | 13.75"H x 12.65"W x 8.0"D (34.9 cm x 32.1 cm x 20.3 cm) |
| efficiency | 91% (Charger) |
| input current | 90 A @ 50.4 V (Maximum Continuous) |
| input current at rated output | (AC amps): 16 A @ 240 V (8 A per leg) |
| input voltage | 48 Volts |
| input voltage range | 36 - 67.6 VDC |
| max operating altitude | 15,000 (4570 m) |
| nominal ac output voltage | 120/240 VAC - 5% |
| nonoperating temperature | -40 degrees C to +70 degrees C (-40 degrees F to 158 degrees F) |
| no load | (120 VAC output, typical): 22 watts |
| operating humidity | 0 to 95% RH non condensing |
| operating temperature | -20 degrees C to +60 degrees C (-4 degrees F to 140 degrees F) |
| output frequency and accuracy | 50 Hz - 0.4 Hz |
| peak efficiency | 0.91 |
| power factor | > 0.95 |
| search mode | 10 watts |
| total harmonic distortion | < 5% |
| transfer relay rating | 30 AAC |
| transfer time | 20 msecs |
| type | Pure Sine Wave |
| wattage | 2800 Watts |
| waveform | Pure Sine Wave |
| weight | 55 lb (25 kg) |
