Description

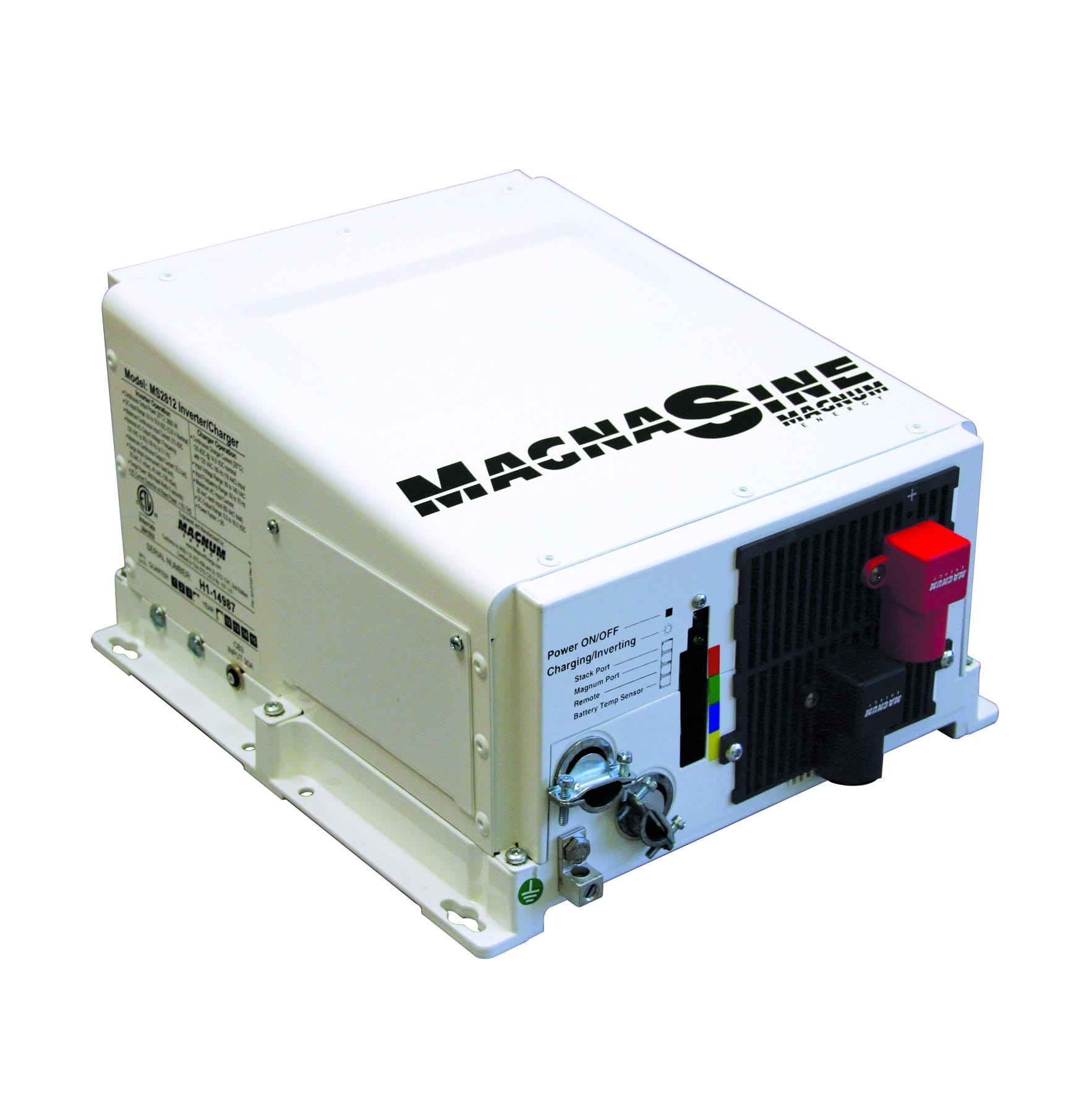

Magnum Energy now offers the MS2712E Inverter/Charger, part of the MS-E Series, for 230 VAC/50 Hz installations.
Specifications
| continuous output power | at 25 degrees C: 2700 VA, 125 A |
| dimensions | (h x w x d): 34.9 cm x 32.1 cm x 20.3 cm (13.75" x 12.65" x 8.0") |
| efficiency | 86% (Charger) |
| input current | 360 ADC (Maximum Continuous) |
| input current at rated output | (AC amps): 8.5 |
| input voltage | 12 Volts |
| input voltage range | 9 - 17 VDC |
| max operating altitude | 15,000 (4570 m) |
| nominal ac output voltage | 230 VAC - 5% |
| nonoperating temperature | -40 degrees C to +70 degrees C (-40 degrees F to 158 degrees F) |
| no load | (120 VAC output, typical): 34 watts |
| operating humidity | 0 to 95% RH non condensing |
| operating temperature | -20 degrees C to +60 degrees C (-4 degrees F to 140 degrees F) |
| output frequency and accuracy | 50 Hz - 0.4 Hz |
| output voltage | 230 Volts AC |
| peak efficiency | 0.86 |
| power factor | > 0.95 |
| search mode | 9 watts |
| total harmonic distortion | < 5% |
| transfer relay rating | 30 AAC |
| transfer time | 20 msecs |
| type | Pure Sine Wave |
| wattage | 2000 Watts |
| waveform | Pure Sine Wave |
| weight | 55 lb (25 kg) |
