Magnum MS2000-20B 2000 Watt Pure Sine Single Input Inverter Charger With Two 20 Amp AC Breakers - $1,296.62 $2,099.00
          be the first to write a review

ATTENTION: We are still operational and fulfilling orders.

Due to the Covid-19 outbreak there may be slight delays in shipping.

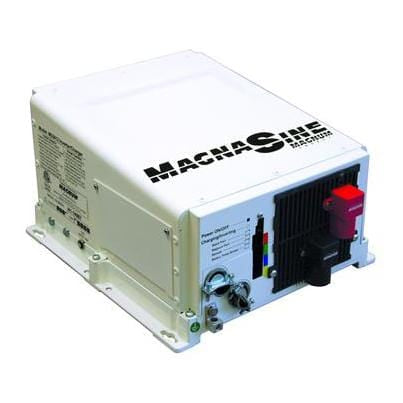

Magnum MS2000-20B 2000 Watt Pure Sine Single Input Inverter Charger With Two 20 Amp AC Breakers

          Be the first to write a review
You Pay $1296.62
$2,099.00 Save 38%
Free Shipping
2 In Stock!

Would you like to calculate shipping for this item?

The Ms Series Inverter / Charger from Magnum Energy is a pure sine wave inverter designed specifically for rugged mobile applications. See the details tab for more information.

The Ms Series is powerful, easy-to-use, and best of all, cost effective. These Magnum inverters are ETL Listed to the stringent requirements of UL/cUL 458 and CSA C22.2 #107.1-01, ensuring that the inverters are safe and reliable. All models also meet KKK-A-1822E standards for emergency vehicle use. The MS2000-20B 2000 watt inverter charger can be installed in four easy steps: simply connect the inverter's output to your distribution circuits or electrical panel, connect your shore power cable (AC) to the inverter's easy-to-reach terminal block, connect the batteries, and switch on the power. This unit comes equipped with a 100 amp Power Factor Corrected charger, conformal coating on the PC boards, stainless steel fastners and two 20 amp AC breakers.

  • Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter / chargers. It uses less energy from a generator than a standard charger - using 25-30% less AC current than standard chargers.
  • Versatile mounting: Mount the MS2000-20B on a shelf, bulkhead, or even upside down
  • The lightweight aluminum base and cover also provides noise reduction and corrosion resistance.
  • Multiple ports, including an RS485 communication port for network expansion, and a remote port.
  • Accessible design: The extra large AC access cover with terminal screw block and 360 degrees DC connection terminals with covers make this inverter more accessible when it needs to be.
  • Convenient switches: This unit comes with an on/off inverter-mounted switch with an easy-to-read LED indicator.
  • The MS2000-20B is backed by a three-year (36-month) limited warranty and a five year limited warranty when installed on an MMP or MP system.
  • 1 msec surge current (amps AC): 60
  • 100 msec surge current (amps AC): 33
  • 5 sec surge power (real watts):3300
  • 30 sec surge power (real watts): 3100
  • 5 min surge power (real watts): 2800
  • 30 min surge power (real watts): 2200
  • Five stage charging capability: Bulk, Absorb, Float, Equalize (requires remote), and Battery Saver
  • Battery temperature compensation: Yes, 15 ft Battery Temp Sensor standard
  • Internal cooling: 0 to 120 cfm variable speed drive using dual 92mm brushless DC fans
  • Overcurrent protection: Yes, with two overlapping circuits
  • Overtemperature protection: Yes on transformer, MOSFETS, and battery
  • Conformal coating on PCB's for corrosion protection: Yes
  • Powder coated chassis & top for corrosion protection: Yes
  • Stainless steel fasteners for corrosion protection: Yes
  • Dual AC branch rated 20 amp breakers
  • Listings: ETL Listed to UL/cUL 458, CSA C22.2 #107.1-01, meets KKK-A-1822E standards.
  • Warranty: Three years (five years when installed on MMP or MP system)
  • Mounting: Shelf (top or bottom up) or bulkhead (vents up)



  • Input voltage range : 9 - 17 VDC
  • Nominal AC output voltage : 120 VAC - 5%
  • Output frequency and accuracy : 60 Hz - 0.1 Hz
  • Total Harmonic Distortion : < 5%
  • Continuous Output Power : at 25 degrees C: 2000 VA, 100 ADC
  • Transfer Time : 16 msecs
  • Input Current : 266 ADC (Maximum Continuous)
  • Peak efficiency : 89%
  • Search mode : 5 watts
  • No load : (120 VAC output, typical): 25 watts
  • Waveform : Pure Sine Wave
  • Efficiency : 85% (Charger)
  • Power Factor : > .95
  • Input current at rated output : (AC amps): 15
  • Transfer Relay Rating : 30 A single input
  • Operating Temperature : 20 degrees C to +60 degrees C (-4 degrees F to 140 degrees F)
  • Nonoperating temperature : -40 degrees C to +70 degrees C (-40 degrees F to 158 degrees F)
  • Operating humidity : 0 to 95% RH non condensing
  • Dimensions : 13.75"H x 12.65"W x 7.0"D (34.9 cm x 32.1 cm x 17.8 cm)
  • Weight : 40 lb (18.1 kg)
  • Max operating altitude : 15,000 (4570 m)
  • Input Voltage : 12 Volts
  • Wattage : 2000 Watts
  • Type : Pure Sine Wave
