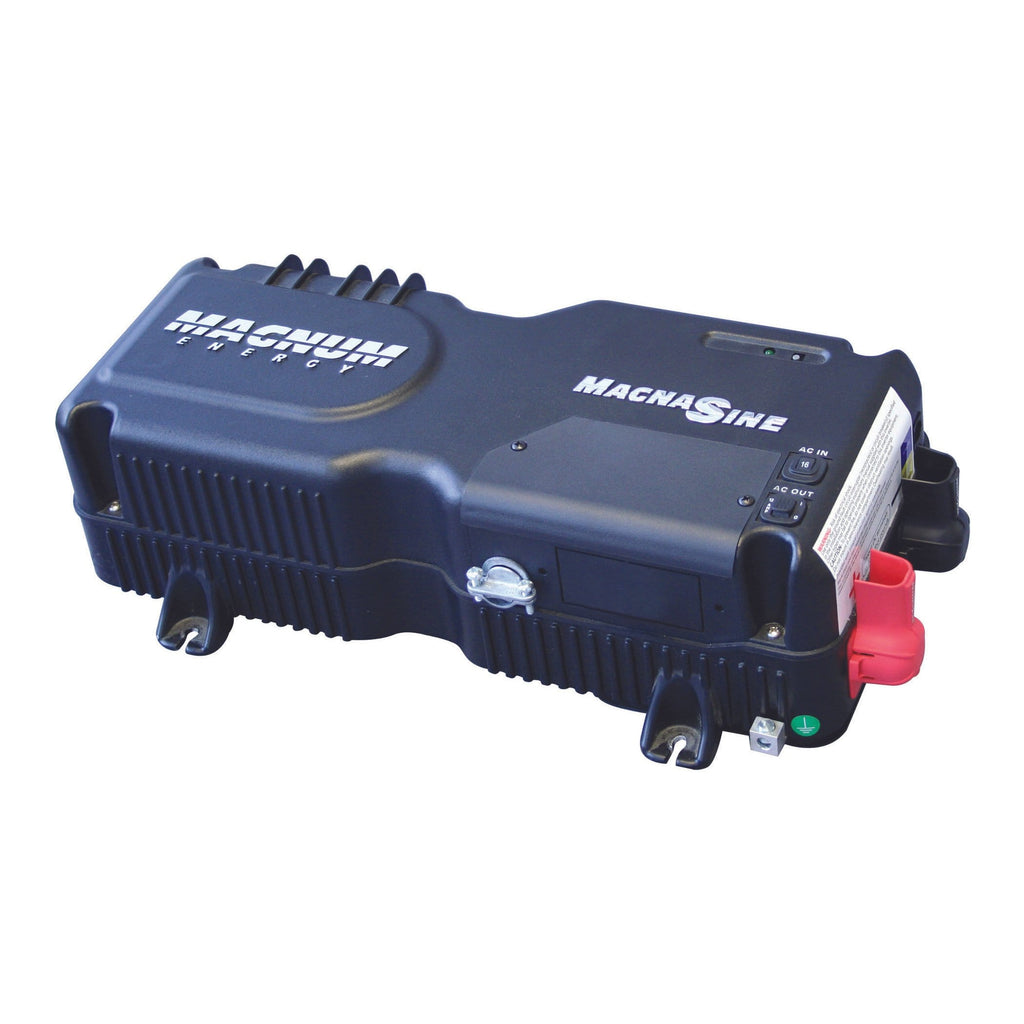

Magnum MMS1012 1000 Watt 12 Volt Pure Sine Inverter Charger

Save $45.24
Magnum DimensionsSKU: MMS1012

Price:
Sale price$928.22 Regular price$973.46
Stock:
Sold out
Free Shipping* (Some exclusions apply)true

Description

The Magnum MMS1012 Inverter / Charger is a power factor corrected pure sine wave inverter that provides a cost effective solution for those with smaller power needs in mobile applications.

Specifications

continuous output power at 25 degrees C: 1000 VA, 50 ADC
dimensions 16.6"L x 8.4"W x 4.7"H (42 cm x 21 cm x 12 cm)
efficiency 84% (Charger)
input current 133 ADC (Maximum Continuous)
input current at rated output (AC amps): 7
input voltage 9 to 17 VDC
max operating altitude 15,000 (4570 m)
nominal ac output voltage 120 VAC - 5%
nonoperating temperature -40 degrees C to +70 degrees C (-40 degrees F to 158 degrees F)
no load (120 VAC output, typical): 19 watts
operating humidity 0 to 95% RH non condensing
operating temperature -20 degrees C to +60 degrees C (-4degrees F to 140 degrees F)
output frequency and accuracy 60 Hz - 0.1 Hz
output voltage 12 Volt
peak efficiency 0.87
power factor > 0.95
search mode 5 watts
total harmonic distortion < 5%
transfer relay rating 20 AAC (input current for charging and pass through)
transfer time 16 msecs
type Pure Sine Wave
wattage 1000 Watts
waveform Pure Sine Wave
weight 23 lb (10.4 kg)
