Description

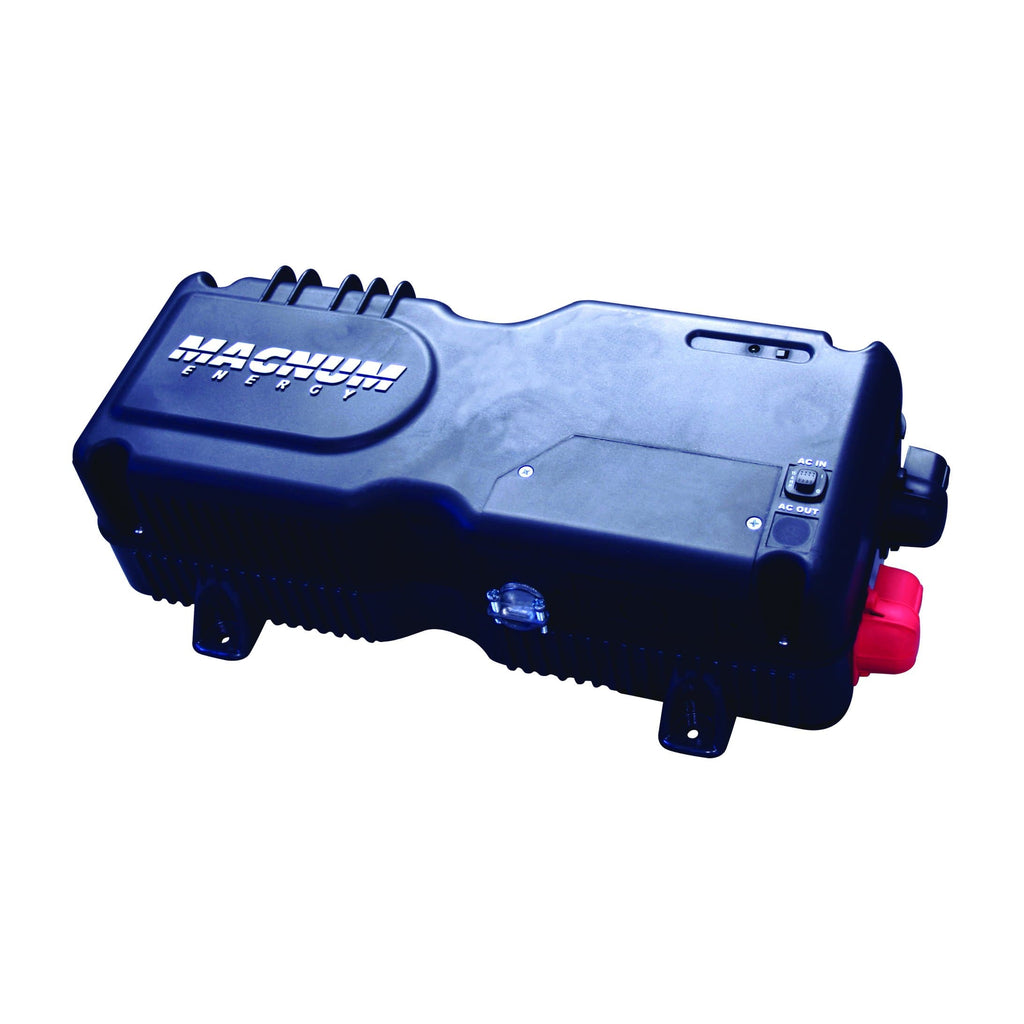

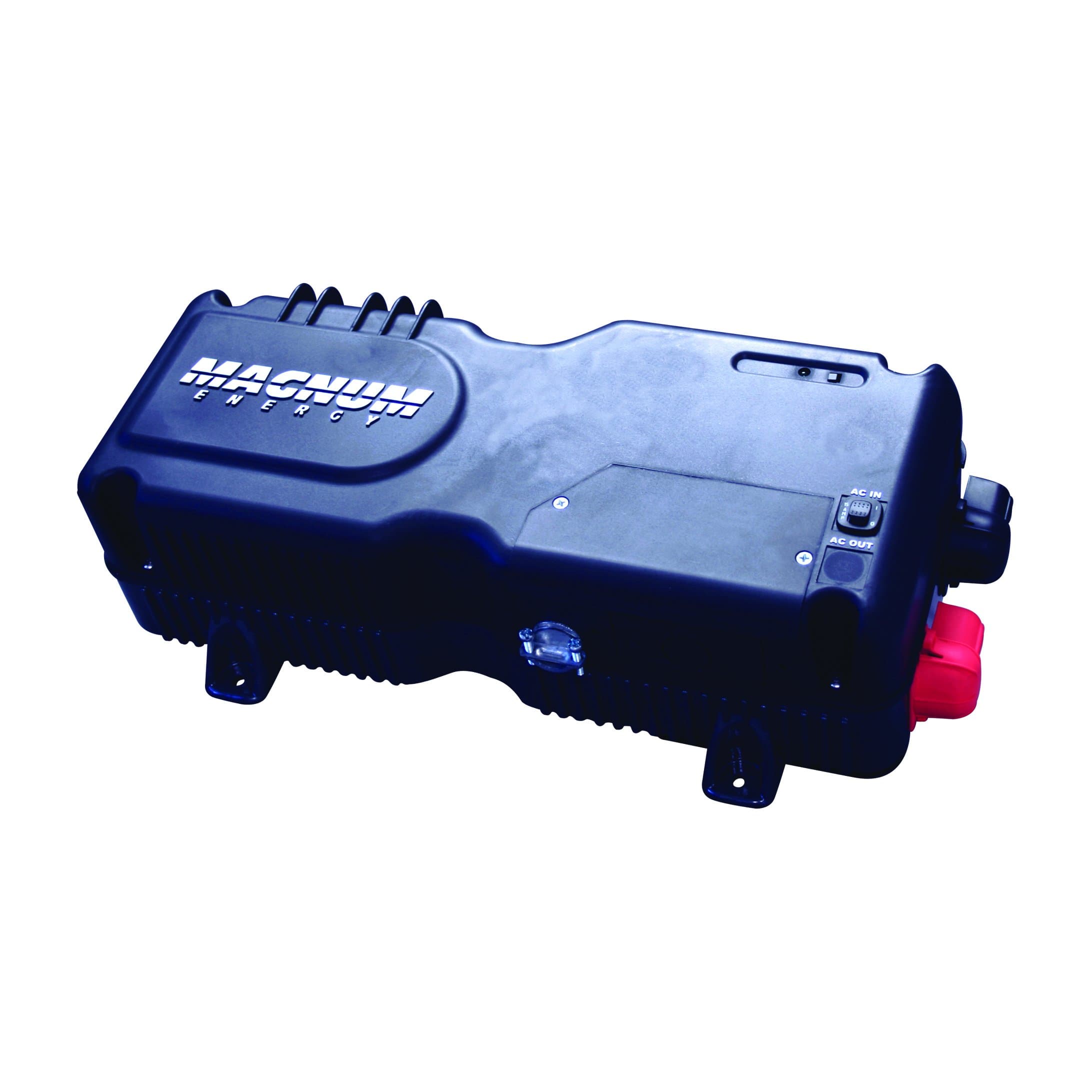

The Magnum MM612AE is a modified sine wave inverter with a 30 amp power factor corrected (PFC) charger that provides a cost effective solution for those with smaller power needs in mobile applications.
Specifications
| continuous current output | 5 AAC |
| continuous output power | at 25 degrees C (with 1.0 PF): 600 VA |
| dimensions | 16.6"L x 8.4"W x 4.7"H (42 cm x 21 cm x 12 cm) |
| efficiency | 85% (Charger) |
| input current | 80 ADC (Maximum Continuous) |
| input current at rated output | (AC amps): 4 |
| input voltage range | 9 to 16 VDC |
| max operating altitude | 15,000 (4570 m) |
| nominal ac output voltage | 120 VAC - 5% |
| nonoperating temperature | -40 degrees C to +70 degrees C (-40 degree sF to 158 degrees F) |
| no load | (120 VAC output, typical): 10 watts |
| operating humidity | 0 to 95% RH non condensing |
| operating temperature | -20 degrees C to +60 degrees C (-4 degrees F to 140 degrees F) |
| output frequency and accuracy | 60 Hz - 0.1 Hz |
| output voltage | 12 Volt |
| peak efficiency | 0.95 |
| power factor | >0.95 |
| search mode | 3 watts |
| transfer relay rating | 20 AAC (input current for charging and pass through) |
| transfer time | 16 msecs |
| type | Modified Sine Wave |
| wattage | 600 Watts |
| waveform | Modified Sine Wave |
| weight | 16 lb (7.3 kg) |
